Manual Hose Crimping Machine Finn Power Crimper P20 Hydraulic Hose Crimper

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number P32MS
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4'' - 2''
Die Sets 10 Sets Color Blue Or Customized
Max. Opening 25mm Crimping Force 640T
Product P32MS Crimping Hose Machine Application Workshop
Control Method Button Control Voltage 220V
Size 630*450*600mm Weight 200Kg
Highlight

Portable P20 Hydraulic Hose Crimper

,

Finn Power P20 Hydraulic Hose Crimper

,

P20 Manual Hose Crimping Machine

Leave a Message
Product Description



Portable Manual Pipe Pressing Machine Finn Power P20 Hydraulic Hose Crimper

MANUAL HOSE CRIMPING MACHINE P32MS


DESCRIPTION



P32MS hose crimper is designed for crimping hydraulic rubber hose from 1/4'' inch to 2'' inch with 4 layers steel. It is equiped with 10 die sets with hardness HRC63. The hose assembly after pressing by this tool has a beautiful outlook and avoid small-big head problem. The die sets are polishing well, so during the crimping work, will not harm the surface of the steel ferrule, so prevent the ferrule get rust.



ADVANTAGES



1) New design of a two conical hydraulic cylinder connection,

2) Quick speed for pipe pressing work,

3) Micrometer with a high precision up to 0.01mm,

4) Can press steel ferrule, aluminium ferrule and copper ferrule.



TECHNICAL DATA



Model

P32MS Cable Pressing Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4'' - 2'' (inch)

Max. Opening

25 (mm)

Die Sets

10

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V)

Motor Power

3 (KW)

Length

630 (mm)

Width

450 (mm)

Height

600 (mm)

Weight

200 (KG)

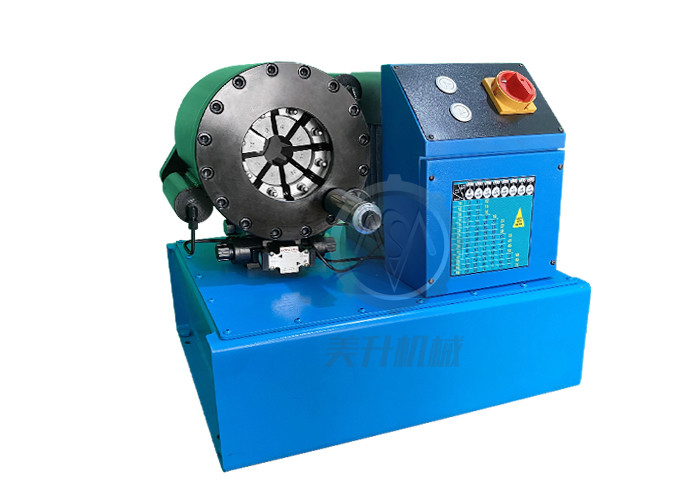

Manual Hose Crimping Machine Finn Power Crimper P20 Hydraulic Hose Crimper 0

P32MS HOSE PRESSING MACHINE DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8mm

35

8*

8 - 10mm

35

10*

10 - 12mm

35

12*

12 - 14mm

35

14

14 - 16mm

60

16

16 - 20mm

60

20

20 - 22mm

60

22

22 - 26mm

60

26

26 - 30mm

60

30

30 - 38mm

70

38

38 - 46mm

70

46

46 - 54mm

80

54

54 - 64mm

80

64

64 - 69mm

80

69*

69 - 76mm

100



NOTE



1) Customized crimping die sets are available;

2) Special voltage 110V, 208V, 240V, 415V are availbale;

3) * for non standard die sets.



OPTIONAL ACCESSORIES



1) Quick Die Change Tool;

2) Die Set Rack/ Machine Stand;

3) UC/CNC Control;

4) Foot Pedal Switch;

5) Pressure Gauge;

6) Normal Stand.





► APPLICABLE PLACE FOR P32MS HYDRAULIC CRIMPING MACHINE

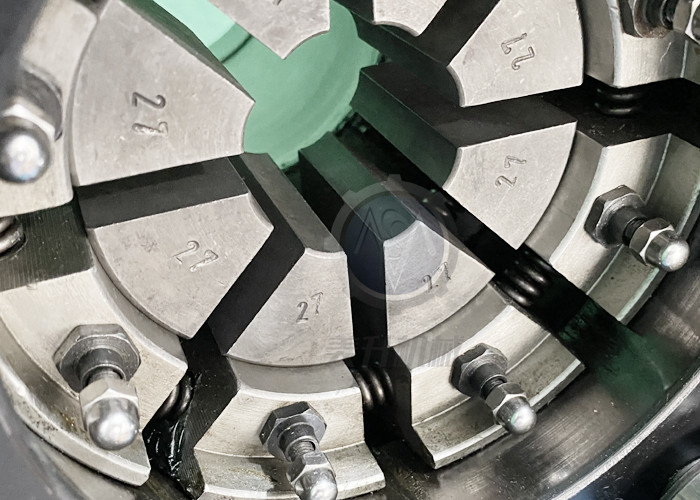

Manual Hose Crimping Machine Finn Power Crimper P20 Hydraulic Hose Crimper 1
