Specifications
Highlight:
P20 Hydraulic Hose Crimper 2 Inch
,640T P20 Hydraulic Hose Crimper
,640T Hose Crimping Machine
Crimping Range:
14 - 64mm
Hose Size:
1/4'' - 2''
Die Sets:
10 Sets
Color:
Blue Or Customized
Max. Opening:
25mm
Crimping Force:
640T
Product:
P20 Hose Pressing Machine
Application:
Workshop
Voltage:
220V
Frequency:
50HZ
Size:
630*450*600mm
Weight:
200Kg
Key Attributes
Brand Name:
MENSION
Model Number:
P20
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

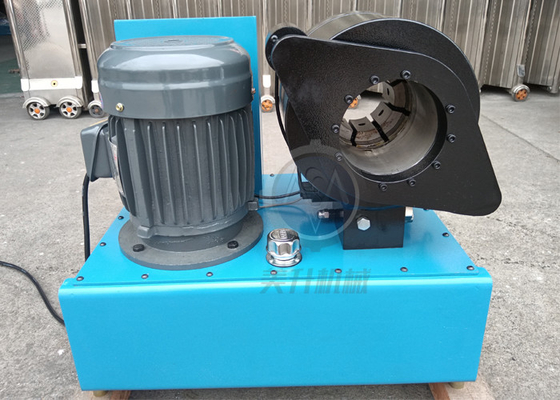

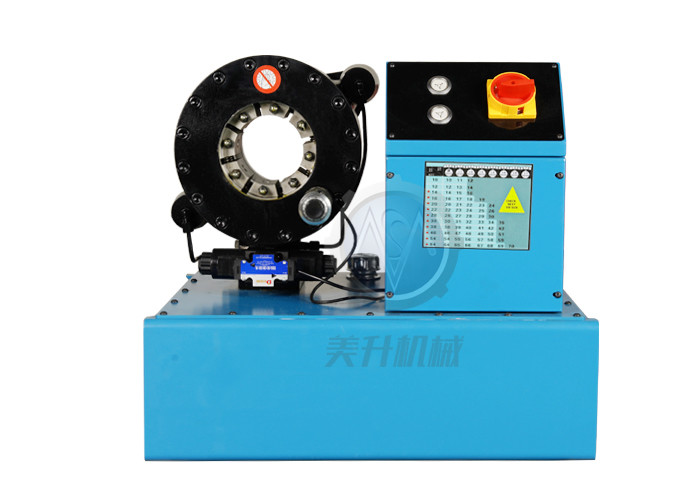

P20 Hydraulic Hose Crimper - Automatic Pipe Crimping Machine
HYDRAULIC FLEXIBLE PRESSURE HOSE CRIMPER P20
Product Overview
The P20 is a bench top hydraulic crimping machine with compact structure designed for crimping high pressure hose up to 2" 4SP. This machine includes numerous options and features to provide an easy and convenient operation experience for hose repair workshops and industrial applications.
Ideal Applications
Excavators, loaders, skidders, cranes, and other engineering construction machinery consume significant quantities of hydraulic hoses. In challenging environments, hydraulic hoses require regular replacement. The P20 offers an economical alternative to purchasing original hose assemblies, making it the ideal choice for repair workshops and maintenance facilities.
Key Advantages
- High crimping accuracy up to 0.01mm
- Reliable performance with high quality components
- Comfortable and simple operation
- Fast delivery time and comprehensive warranty
Technical Specifications
| Model | P20 Cable Crimping Machine |
| Crimping Range | 14 - 64 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4" - 2" (inch) |
| Max. Opening | 25 (mm) |
| Die Sets | 10 |
| Die Set Type | P20 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) |
| Motor Power | 3 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
P20 Hose Crimper Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 60 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
Important Notes
- Customized crimping die sets are available
- Special voltage options: 110V, 208V, 240V, 415V
- * indicates non-standard die sets
Optional Accessories
- Quick Die Change Tool
- Die Set Rack / Machine Stand
- UC/CNC Control
- Foot Pedal Switch
- Pressure Gauge
- Normal Stand
Applications for P20 Hydraulic Hose Crimping Machine
