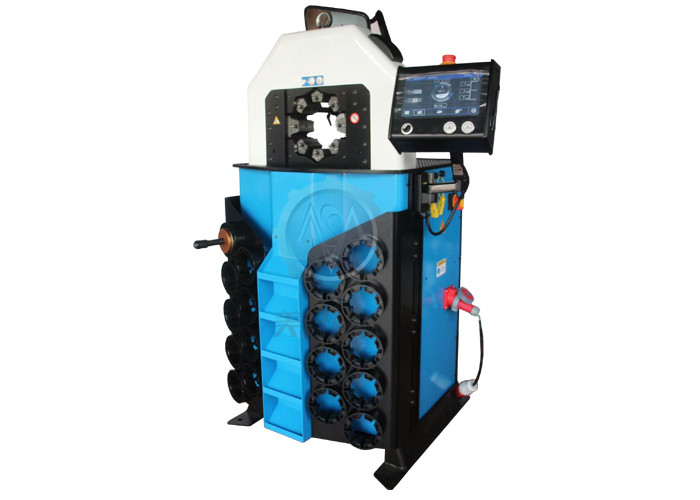

Heavy Duty Hose Crimper P140 Crimping Machine For High Pressure Hose
HOSE CRIMPING MACHINE P140
DESCRIPTION

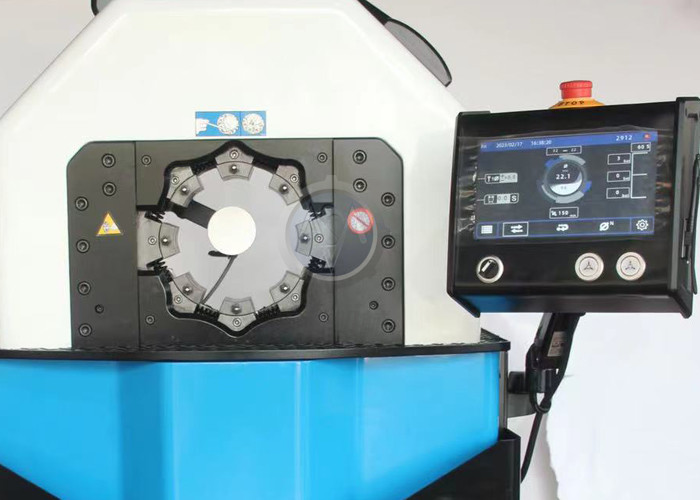

P140 pressing machine for rubber hose is with big crimping power, capable of fabricating six stainless steel wire spiraled high pressure hose up to 2'' inch. The hose crimper machine is with advanced CNC digital control, easy to operate. With clear mirror, makes the worker see the crimping process and make the work more convenient.
ADVANTAGES
1) High accuracy with advanced diameter control dial,
2) Suitable even for big elbow fitting,
3) Wide opening and the diameter can be adjusted,
4) Crimping number function;
5) Pressure hold for hose crimping.
TECHNICAL DATA
|
Model |
P140 Hose Crimping Machine |
|
Crimping Range |
6 - 220 (mm) |
|
Crimping Force |
320 (T) |
|
Hose Size |
1/4'' - 2'' (inch) 6SP |
|
Max. Opening |
82 (mm) |
|
Die Sets |
18 |
|
Die Set Type |
P32 & P140 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
UC |
|
Standard Voltage |
380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
950 (mm) |
|
Width |
880 (mm) |
|
Height |
1750 (mm) |
|
Weight |
1100 (KG) |
P140 HOSE CRIMPER MACHINE DIE SETS
P32 Dies
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 74mm | 110 |
| 74 | 74 - 78mm | 110 |
| 78 | 78 - 84mm | 110 |
P140 Dies
| 84 | 84 - 92mm | 110 |
| 92 | 92- 100mm | 110 |
| 100 | 100 - 108mm | 110 |
| 108* | 108 - 116mm | 110 |
| 116* | 116 - 126mm | 110 |
| 126* | 126 - 136mm | 110 |
NOTE
1) Customized crimping die sets are available;
2) Special voltage 110V, 208V, 240V, 415V are availbale;
3) * for non standard die sets;
4) With one adapter dies.
ACCESSORIES
1) Quick Die Change Tool;
2) Die Set Rack/ Machine Stand;
3) UC/CNC Control;
4) Foot Pedal Switch;
5) Crimping mirror;
6) Emergency stop;
7) Back postioning device.
