Specifications
Highlight:
Hydraulic Hose Crimping Machine Automatic
,Hydraulic Hose Crimping Machine P32NC
,650T Force Hydraulic Hose Crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
650T
System Pressure:
31.5Mpa
Voltage:
380V
Size:
650*550*1360mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P32NC
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

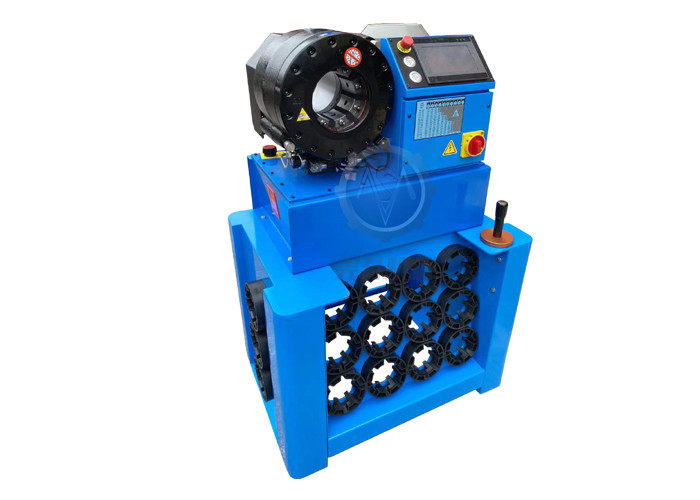

Automatic Hydraulic Hose Crimping Machine P32 Crimper
Automatic Hydraulic Hose Crimping Machine P32NC Cable Pressing Machine with CNC micro computer control for high-pressure hydraulic flexible hose from 1/4" to 2-1/2" pressing and up to 3" industrial pipe swaging.
Product Overview
The P32NC hose crimper is an automatic model featuring CNC micro computer control for high intelligence operation. This crimping machine is designed for high pressure hydraulic flexible hose from 1/4" to 2-1/2" pressing and up to 3" industrial pipe swaging.
With quick die sets change tool, operators can change die sets efficiently without handling individual pieces, significantly improving production efficiency.
Key Advantages
- Famous electric motor with worldwide after-sale service
- Advanced operating system for enhanced user comfort
- High crimping diameter accuracy
- Big crimping force and large opening capacity
Technical Specifications
| Model | P32NC Hydraulic Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
P32 Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
Important Notes
* for non standard die sets
Customized die sets are available
Special voltage 110V, 208V, 240V, 415V are available
Application Showcase
The P32NC is a high-configured hose crimping machine capable of crimping high pressure stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive systems, and air suspension or springs.
