4 Inch Hydraulic Hose Pressing Machine
,4 Inch Industrial Pipe Crimping Machine
4 Inch Hydraulic Hose Pressing Machine Large Industrial Pipe Crimping Machine

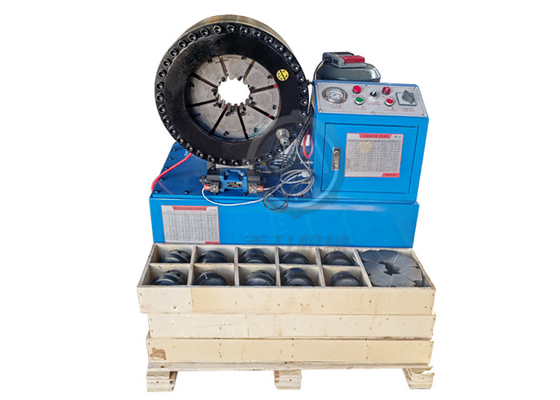

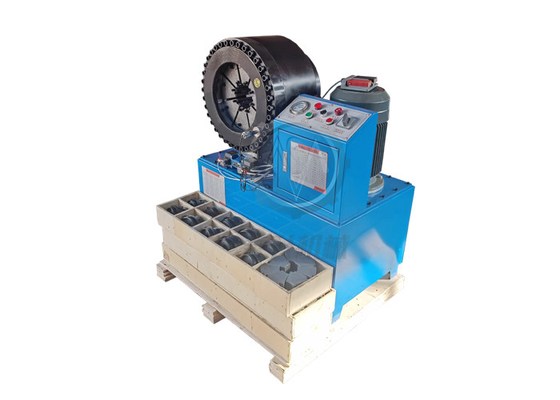

HYDRAULIC RUBBER HOSE PRESSING MACHINE MS - S102
DESCRIPTION
The 4-inch hose crimping machine boasts an array of standout features that set it apart from traditional crimping methods. First and foremost, its wide crimping capacity allows for the handling of various hose sizes, ensuring versatility and compatibility with a range of hydraulic systems.
With precise and consistent crimping capabilities, this machine delivers accuracy and uniform results, guaranteeing secure and leak-free connections. Thanks to advanced technology integration, including programmable, digital, and automated controls, operators can easily configure settings and monitor the crimping process with enhanced efficiency and reduced human error. Moreover, its durable and safe construction ensures longevity and operator protection, with built-in safety features such as emergency stop buttons, safety guards, and pressure relief valves.
The 4-inch hose crimping machine offers quick operation time, adjustable crimping force, easy setup, and a compact design that facilitates convenient mobility and space-saving. It's an all-in-one solution for efficient and reliable hose assembly in various industrial applications.
MAIN ADVANTAGES
1. Quick Operation Time:
Swift crimping process completion.
2. Adjustable Crimping Force:
Flexibility in pressure settings.
3. Easy Setup and Operation:
User-friendly interface, simple assembly.
4. Portable and Compact Design:
Convenient mobility, space-saving.
TECHNICAL DATA
|
Model |
MS-S102 Hose Pressing Machine |
|
Crimping Range |
14 - 187 (mm) |
|
Crimping Force |
1500 (T) |
|
Hose Size |
1/4 - 4 (inch) 6 Layers |
|
Max. Opening |
30 (mm) |
|
Die Sets |
16 + 1 |
|
Die Set Type |
51 + 102 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
850 (mm) |
|
Width |
530 (mm) |
|
Height |
980 (mm) |
|
Weight |
500 (KG) |
51 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 75 mm |
80 |
|
75 |
75 - 87 mm |
100 |
| 87 | 87 - 100 mm | 120 |
| 100 | 100 - 115 mm | 120 |
| 115 | 115 - 130 mm | 120 |
| 130 | 130 - 147 mm | 120 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
-
