4'' High Pressure Hose Crimping Machine
,Hydraulic High Pressure Hose Crimping Machine
,4 Inch Industrial Hose Crimper

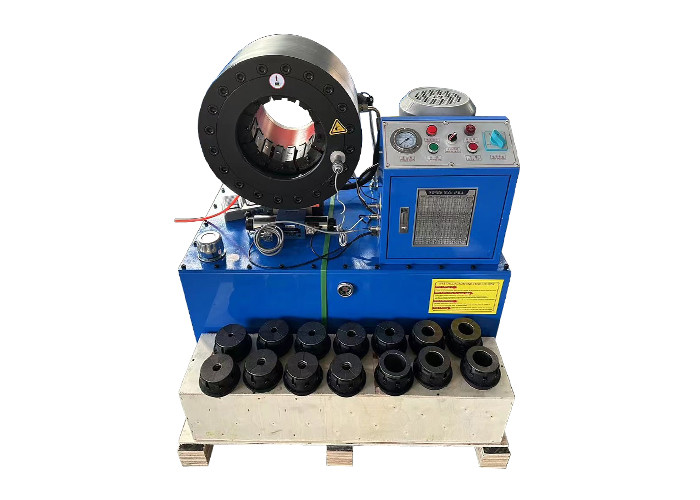

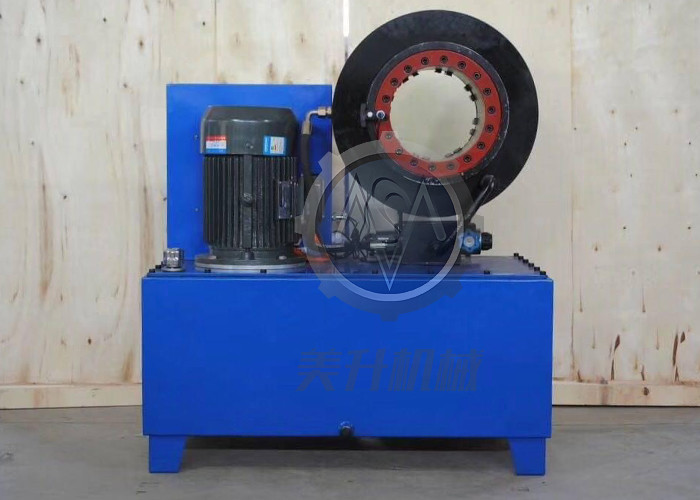

HYDRAULIC RUBBER HOSE CRIMPER MACHINE MS - S102
DESCRIPTION
If you're seeking a reliable solution to streamline your hose assembly process, look no further than the 4-Inch Hose Crimping Machine. This efficient equipment is designed to simplify the crimping of large-diameter hoses, making it an indispensable tool for various industries. With its sturdy construction and hydraulic system, the machine ensures secure connections, minimizing the risk of leaks and enhancing overall performance.
Featuring user-friendly controls and a straightforward interface, operators can effortlessly navigate the crimping process, saving valuable time and improving productivity. Whether you work in manufacturing, construction, or other sectors that rely on robust hose assemblies, the 4-Inch Hose Crimping Machine is the ideal choice to enhance efficiency and achieve reliable results.
MAIN ADVANTAGES
1. Reliable: Ensures secure and leak-free connections.
2. Efficient: Streamlines the hose assembly process.
3. Precise: Delivers consistent and uniform crimps.
4. User-friendly: Intuitive controls for easy operation.
5. Versatile: Suitable for various industries.
TECHNICAL DATA
|
Model |
MS-S102 Hose Crimper |
|
Crimping Range |
14 - 187 (mm) |
|
Crimping Force |
1500 (T) |
|
Hose Size |
1/4 - 4 (inch) 6 Layers |
|
Max. Opening |
30 (mm) |
|
Die Sets |
16 + 1 |
|
Die Set Type |
51 + 102 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
850 (mm) |
|
Width |
530 (mm) |
|
Height |
980 (mm) |
|
Weight |
500 (KG) |
51 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 75 mm |
80 |
|
75 |
75 - 87 mm |
100 |
| 87 | 87 - 100 mm | 120 |
| 100 | 100 - 115 mm | 120 |
| 115 | 115 - 130 mm | 120 |
| 130 | 130 - 147 mm | 120 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
