Workshop Hydraulic High Pressure Hose Crimper
,Finn Power Hydraulic Hose Crimper
,P32 Hose Pressing Machine

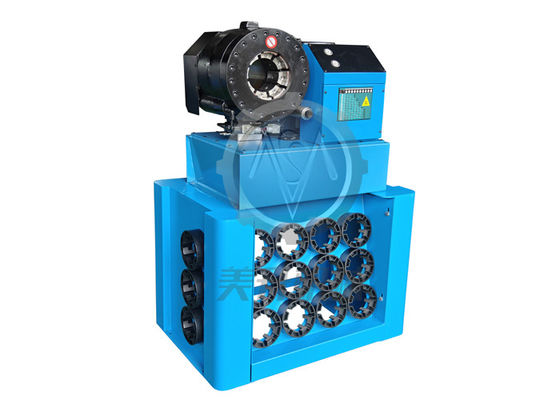

P32 HOSE HYDRAULIC PRESSING MACHINE
DESCRIPTION
P32 high pressure hose crimping machine is efficiency and reliability in hose connections.
Our cutting-edge High Pressure Hose Crimping Machine is here to revolutionize your hose assembly process. With unrivaled precision and uncompromising reliability, this machine ensures secure and leak-free connections, empowering your operations across various industries.
Experience unparalleled versatility as this machine effortlessly handles a wide range of hose sizes and types. Equipped with an intuitive interface and user-friendly controls, operators can achieve consistent and precise crimps with ease, minimizing downtime and maximizing productivity.
Built to withstand demanding environments, this machine boasts a robust construction and advanced safety features, prioritizing both durability and operator protection. Elevate your hose assembly capabilities with our High Pressure Hose Crimping Machine, setting new standards for efficiency and reliability.
ADVANTAGES
1. Efficiency Boost: Streamlined Production Process.
2. Reliable Connections: Leak-Free Performance.
3. Versatile Application: Wide Range of Uses.
4. Time Savings: Faster Hose Assembly.
TECHNICAL DATA
|
Model |
P32 Hose Pressing Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6 * |
6 ... 8mm |
55mm |
|
8 * |
8 ... 10mm |
55mm |
|
10 * |
10 ... 12mm |
55mm |
|
12 * |
12 ... 14mm |
55mm |
|
14 |
14 ... 16mm |
55mm |
|
16 |
16 ... 19mm |
55mm |
|
19 |
19 ... 22mm |
55mm |
|
22 |
22 ... 26mm |
70mm |
|
26 |
26 ... 30mm |
70mm |
|
30 |
30 ... 34mm |
70mm |
|
34 |
34 ... 39mm |
75mm |
|
39 |
39 ... 45mm |
75mm |
|
45 |
45 ... 51mm |
90mm |
|
51 |
51 ... 57mm |
90mm |
|
57 |
57 ... 63mm |
100mm |
|
63 |
63 ... 69mm |
110mm |
|
69 |
69 ... 74mm |
110mm |
| 74 * | 74 ... 78mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• UC control system
• Position limit device
CRIMPING APPLICATIONS FOR THE P32 HYDRAULIC HOSE CRIMPING MACHINE
-
CReliable quality, easy to use, a great helper for starting a business.
-
CI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
