Specifications
Highlight:
Rubber Hose Press Tool P16
,Portable Manual Hose Crimping Machine
,45mm Rubber Hose Crimping Machine
Crimping Range:
14 - 45mm
Hose Size:
1/4 - 1inch
Die Sets:
7
Color:
Blue
Max. Opening:
20mm
Crimping Force:
150T
Product Name:
P16 Rubber Hose Pressing Tool
Application:
Workshop
Oil Tank:
20L
Power:
Manual Pump
Size:
400*320*300mm
Weight:
32Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P16
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

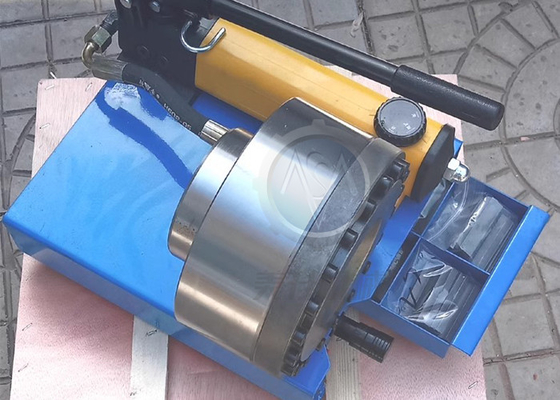

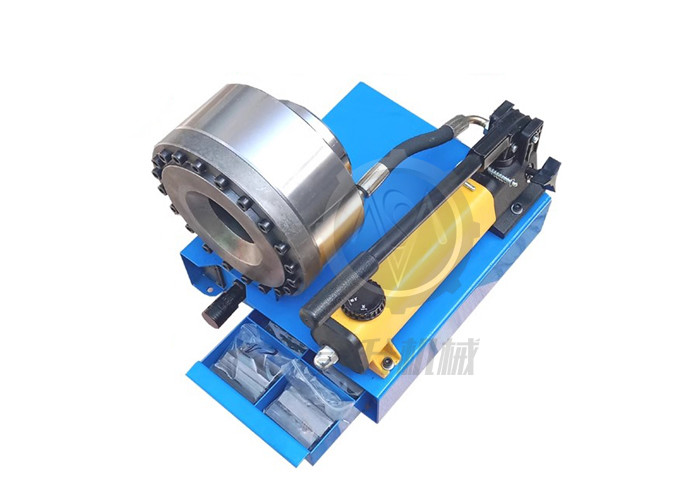

Finn Power P16HP Manual Hydraulic Hose Crimping Machine
Portable Rubber Pipe Pressing Tool P16
The P16HP Manual Hand Pump Hose Crimper is a versatile and robust tool designed for reliable hose assembly and repair tasks. This manual crimping machine offers exceptional flexibility, making it an ideal choice for professionals who require portable and on-site hose crimping solutions.
The P16HP features a durable construction and a user-friendly design, ensuring precise and secure crimps with minimal effort. Its compact size and lightweight nature allow for easy transportation and operation in various work environments. Compatible with a wide range of hose sizes and fittings, the P16HP Manual Hand Pump Hose Crimper provides dependable performance and exceptional versatility for professionals in diverse industries.
Main Features
-
Advanced Hydraulic System:
Ensures powerful and efficient crimping
-
On-Site Assembly and Repair:
Convenient for immediate hose maintenance
-
Wide Application Range:
Suitable for multiple industries and tasks
-
Minimal Maintenance Requirements:
Long-term reliability with reduced upkeep
Technical Specifications
| Model | P16 Hose Pressing Tool |
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20 (mm) |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |
P16 Hose Pressing Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 23 mm | 55 |
| 23 | 23 - 27 mm | 55 |
| 27 | 27 - 31 mm | 55 |
| 31 | 31 - 35 mm | 65 |
| 35 | 35 - 41 mm | 65 |
Note:
- * for non standard die sets
- Customized die sets are available
- Max. opening is the stroke between die sets fully closed and fully opened
- * for non standard die sets
- Customized die sets are available
- Max. opening is the stroke between die sets fully closed and fully opened
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC control
P16 Hydraulic Crimping Machine Applications
