Specifications
Highlight:
Flexible high pressure hose crimper
,Manual hydraulic pipe pressing tool
,P16HP hose crimper
Crimping Range:
14 - 45mm
Hose Size:
1/4 - 1inch
Die Sets:
7
Color:
Blue
Max. Opening:
20mm
Crimping Force:
150T
Product Name:
P16HP High Pressure Hose Crimper
Application:
Workshop
Oil Tank:
20L
Power:
Manual Pump
Size:
400*320*300mm
Weight:
32Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P16HP
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

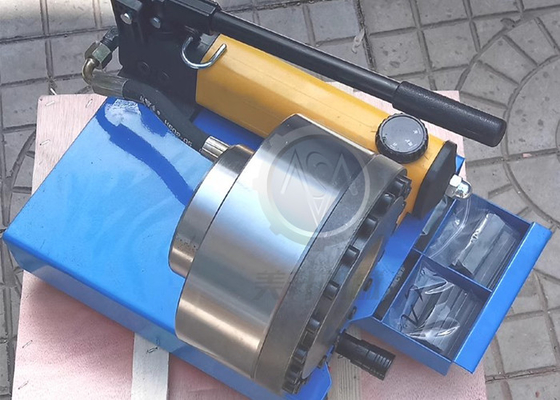

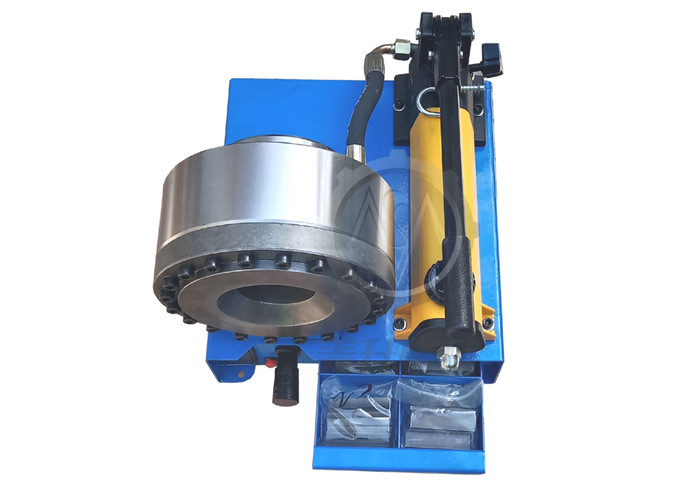

Flexible High Pressure Hose Crimper P16HP Manual Hydraulic Pipe Pressing Tool
Product Overview
The P16HP Portable Hydraulic Hose Crimper is a powerful and convenient tool for hose assembly and repair. Combining hydraulic technology with portability, this crimping machine is perfect for on-site use. Its sturdy construction and user-friendly design guarantee precise and secure hose connections.
With its compact size and lightweight design, it can be easily transported and operated in any work environment. The P16HP Portable Hydraulic Hose Crimper provides professionals with reliability, versatility, and convenience, making it an essential tool for efficient hose-related tasks.
Main Features
Portable Design
Compact and lightweight construction for easy transport
Hydraulic Power
Strong crimping force for reliable connections
Versatile Compatibility
Wide hose range accommodation
User-Friendly Operation
Easy to use with intuitive controls
Technical Specifications
| Model | P16HP High Pressure Hose Crimper |
|---|---|
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20 (mm) |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |
P16 Hose Pressing Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 23 mm | 55 |
| 23 | 23 - 27 mm | 55 |
| 27 | 27 - 31 mm | 55 |
| 31 | 31 - 35 mm | 65 |
| 35 | 35 - 41 mm | 65 |
Important Notes
* for non standard die sets
Customized die sets are available
Max. opening is the stroke between die sets fully closed and fully opened
Optional Accessories
Quick Change Tool
Quick Change Die Set Rack
UC control
P16 Hydraulic Crimping Machine Applications
