51mm High Pressure Hose Crimper
,Electric Hydraulic Hose Crimping Machine
,2 Inch Electric Hose Crimper
Electric Manual Hose Crimping Machine 2 Inch Hydraulic Hose Crimper

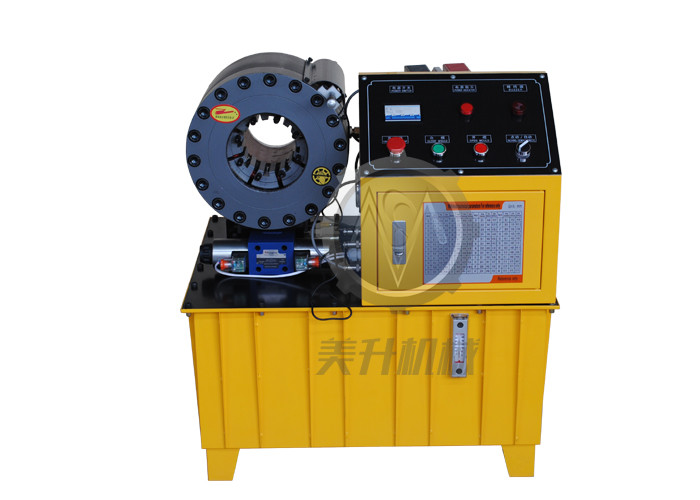

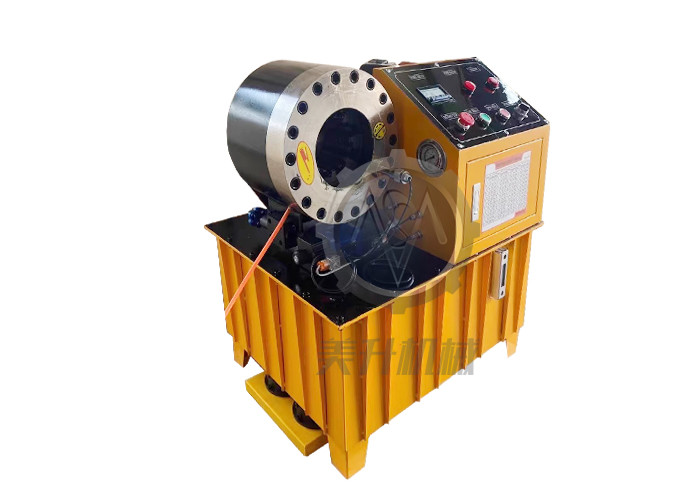

51mm HYDRAULIC HOSE CRIMPING MACHINE MS-51
DESCRIPTION
The MS-51, a cutting-edge 2-inch hose crimping machine designed to revolutionize your industrial operations. This advanced model combines precision engineering with user-friendly features for efficient hose assembly. With its robust construction and state-of-the-art technology, the MS-51 delivers exceptional crimping accuracy, ensuring secure and leak-free connections. Its intuitive interface simplifies operation, while the powerful hydraulic system guarantees consistent performance.
MAIN FEATURES
1. Precise Crimping Accuracy:
- Ensures secure, leak-free connections.
2. User-Friendly Interface:
- Simplifies operation for easy use.
3. Powerful Hydraulic System:
- Delivers consistent and reliable performance.
4. Compact and Portable Design:
- Suitable for various work environments.
5. Customizable Settings and Safety Mechanisms:
- Offers versatility and enhanced safety.
TECHNICAL DATA
|
Model |
MS - 51 Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) Single Phase |
|
Motor Power |
3 (KW) |
|
Length |
670 (mm) |
|
Width |
430 (mm) |
|
Height |
820 (mm) |
|
Weight |
260 (KG) |
51 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping (mm) |
Length (mm) |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 69 mm |
80 |
|
69* |
69 - 76 mm |
90 |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• UC Control
► CRIMPING MACHINE ARE MAINLY USED FOR HYDRAULIC HOSE ASSEMBLY MAKING
-
