xProduct Details
| Crimping Range | 6 - 51mm | Hose Size | 1/4 - 2.5inch |
|---|---|---|---|
| Mold | 13 | Warranty | 1 Years |
| Opening Without Dies | 135mm | Control | UC |
| System Pressure | 28Mpa | Voltage | 380V 50HZ |
| Volume | 0.5CBM | Weight | 310Kg |
| High Light | P32N Pipe Pressing Machine,PLC Hydraulic Pipe Pressing Machine,2 Inch Hose Crimping Machine |
||
Product Description
NC130 High Pressure Pipe Pressing Machine 2 Inch Hose Crimping Machine

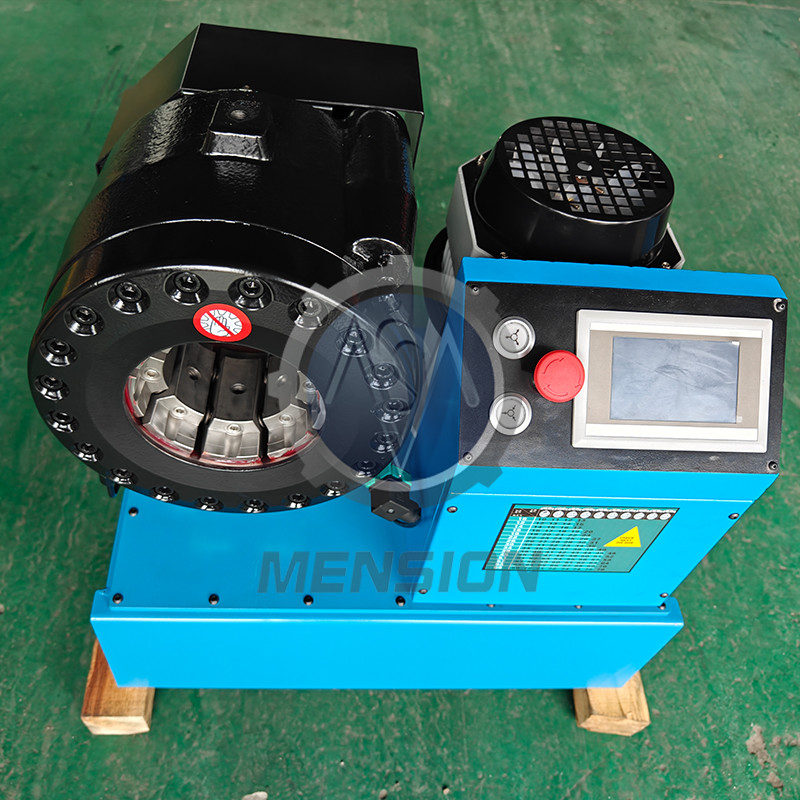

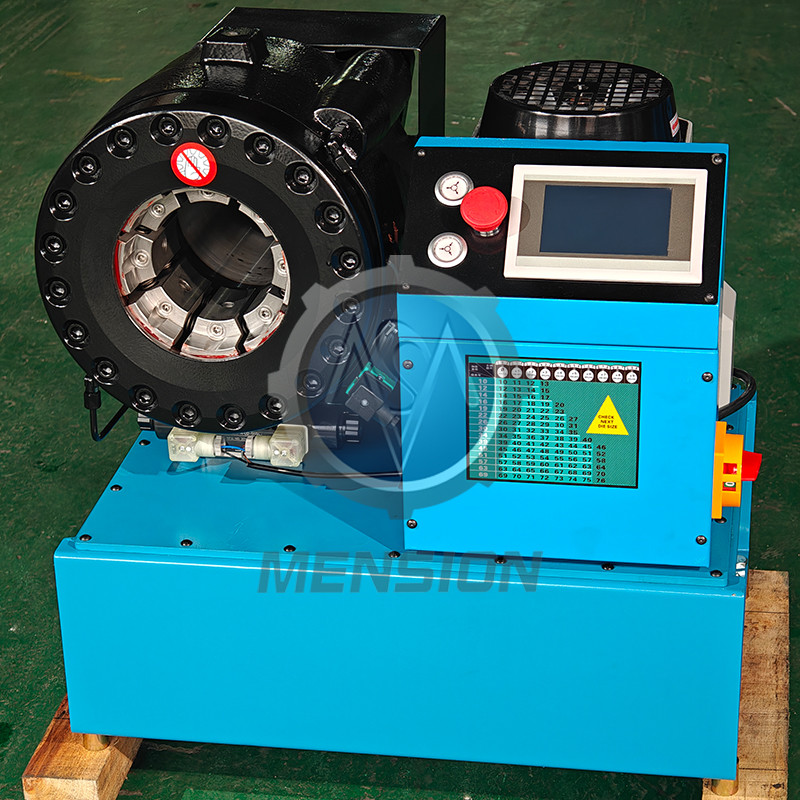

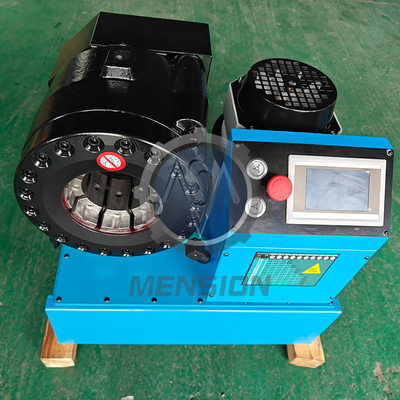

NUMERICAL CONTROL HOSE CRIMPING MACHINE P32N
DESCRIPTION
P32N is a hose crimper which is PLC micro-computer control. It has the crimping range from 1/4 inch to 2 inch six wires braided, and up to 2.5 inch hydraulic hose, 3 inch indutrial hose.
When the hose production need to be done with large production, using a CNC control pressing machine will be much better, as the crimping diameter can be remembered by the system ,no need to adjust every time when you working.
ADVANTAGES
1. High Precision:
Ensures accurate and consistent crimps.
2. Top Efficiency:
Streamlines production and reduces manual labor.
3. Versatility Design:
Accommodates diverse hose sizes and configurations.
4. Safety:
Integrated features prioritize operator well-being.
TECHNICAL DATA
|
Model |
P32N Hydraulic Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 78mm |
110 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
► APPLICATION SHOW
Hose crimping machines find applications in various industries where hoses are used. Here are some common fields where hose crimping machines are employed:
1. Manufacturing and Industrial: Hose crimping machines are extensively used in manufacturing sectors such as automotive, aerospace, machinery, and equipment production. They are used to crimp hoses for fluid transfer, hydraulic systems, pneumatic systems, and other industrial applications.
2. Construction and Infrastructure: In the construction industry, hose crimping machines are utilized for crimping hoses used in concrete pumping, foundation work, tunneling, and other construction-related activities. These machines ensure secure connections and reliable fluid transfer in heavy-duty construction equipment.
3. Agriculture and Farming: Hose crimping machines are employed in the agricultural sector for crimping hoses used in irrigation systems, sprayers, fertilizers, and other farming equipment. They help ensure leak-free connections and efficient fluid distribution in agricultural operations.
