P32 Cable Crimping Machine
,Hydraulic Hose Pressing Machine 1/4''

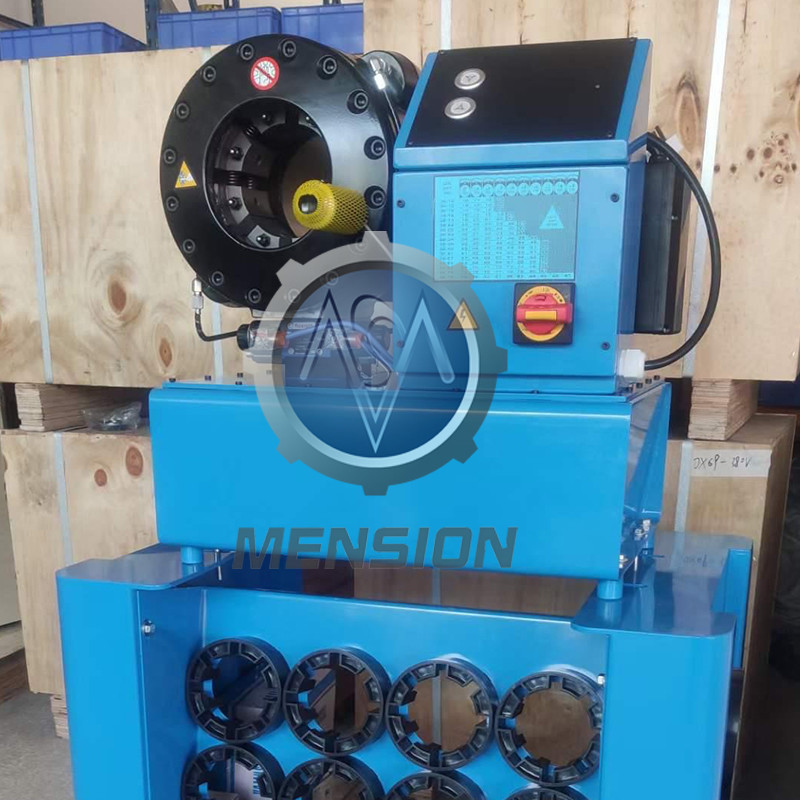

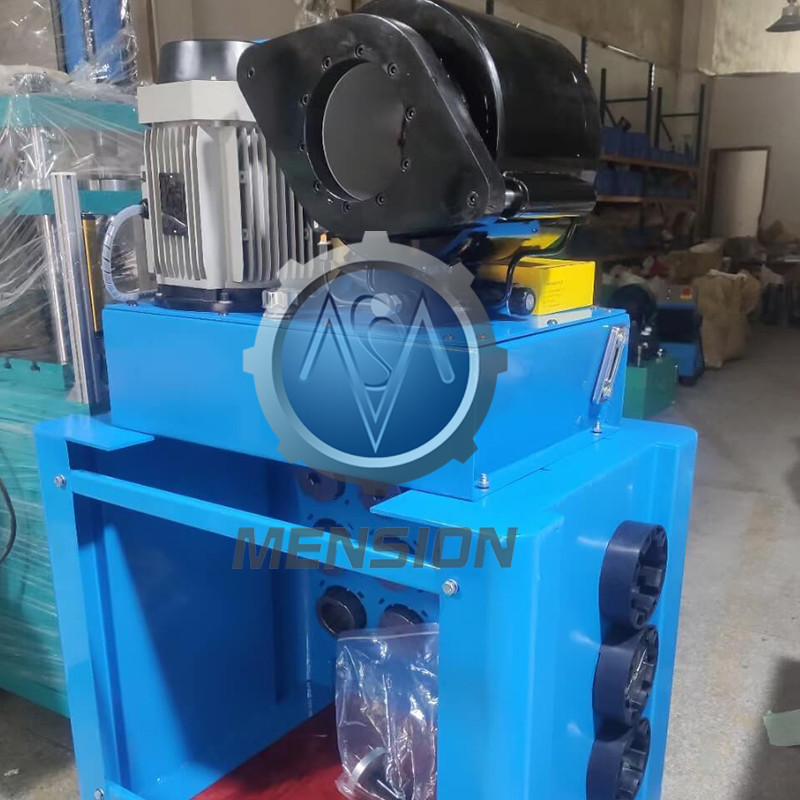

P32MS ELECTRIC CABLE CRIMPING MACHINE
DESCRIPTION
P32MS is a Finn Power model hose pressing tool. It can crimp hydraulic hose from 4mm and up to 2.5 inch with wire braided or wire spiraled, like 4SH 4SP high pressure hose and even extreme high pressure R13 R15 rubber hose.
P32MS is standard with foot pedal, so the operator can hold the hose by hands, which will be more convenient. Emergency stop can be supplied also.
ADVANTAGES
1. Eton electric system, high stability.
2. Rexroth Germany hydraulic system.
3. User-friendly design.
4. Verticle movement for master die, high accuracy.
TECHNICAL DATA
|
Model |
P32MS Crimper Press Hose Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6 * |
6 ... 8mm |
55mm |
|
8 * |
8 ... 10mm |
55mm |
|
10 * |
10 ... 12mm |
55mm |
|
12 * |
12 ... 14mm |
55mm |
|
14 |
14 ... 16mm |
55mm |
|
16 |
16 ... 19mm |
55mm |
|
19 |
19 ... 22mm |
55mm |
|
22 |
22 ... 26mm |
70mm |
|
26 |
26 ... 30mm |
70mm |
|
30 |
30 ... 34mm |
70mm |
|
34 |
34 ... 39mm |
75mm |
|
39 |
39 ... 45mm |
75mm |
|
45 |
45 ... 51mm |
90mm |
|
51 |
51 ... 57mm |
90mm |
|
57 |
57 ... 63mm |
100mm |
|
63 |
63 ... 69mm |
110mm |
|
69 |
69 ... 74mm |
110mm |
| 74 * | 74 ... 78mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• UC control system
• Position limit device
CRIMPING APPLICATIONS FOR THE P32 HYDRAULIC HOSE CRIMPING MACHINE
-
