NC130 High Pressure Pipe Pressing Machine 2 Inch Hose Crimping Machine

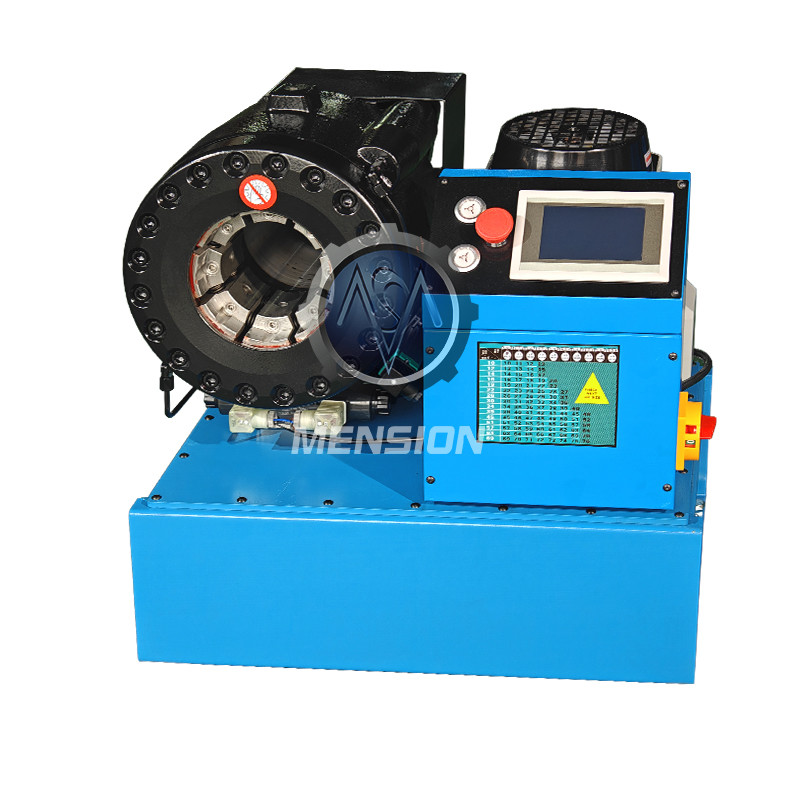

CNC CONTROL P32NC HYDRAULIC HOSE CRIMPING MACHINE
The P32NC hose pressing machine is used for high pressure hydraulic hose making or low pressure industrial pipe ferrules pressing. It has compact structure, which enable it can be easily installed on any platform to reach a height that makes the operator confortable.
The crimper is comes with 13 dies sets, each die sets can press a specific diameter. Which means for each hose size, there will be at least one proper dies to press the ferrule, so that the ferrule after crimping will have a good look.
At the same time, the pressing tool has a quick change tool for the die sets, easy to learn and easy to operate. This will saves the time and improve the effiency.
ADVANTAGES
- Ergonomic design with high efficiency;
- Quick change tools for the 13 die sets;
- Emergency stop device to prevent harm;
- High quality spares parts;
- Modern material processing.
- Suitable for one quater inch to 2.5 inch 4 layers hose press.
TECHNICAL DATA
|
Model |
P32NC Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
0.5 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
UC - Automatic Control |
|
Standard Voltage |
380 (V) or 220 (V) |
| Frequency | 50 (HZ) or 60 (HZ) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32NC CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 78mm |
110 |
NOTE
- * for non standard die sets;
- Customized die sets with different size and shape or lenght are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
- Foot Pedal is offered;
- Automatic feeding is available.

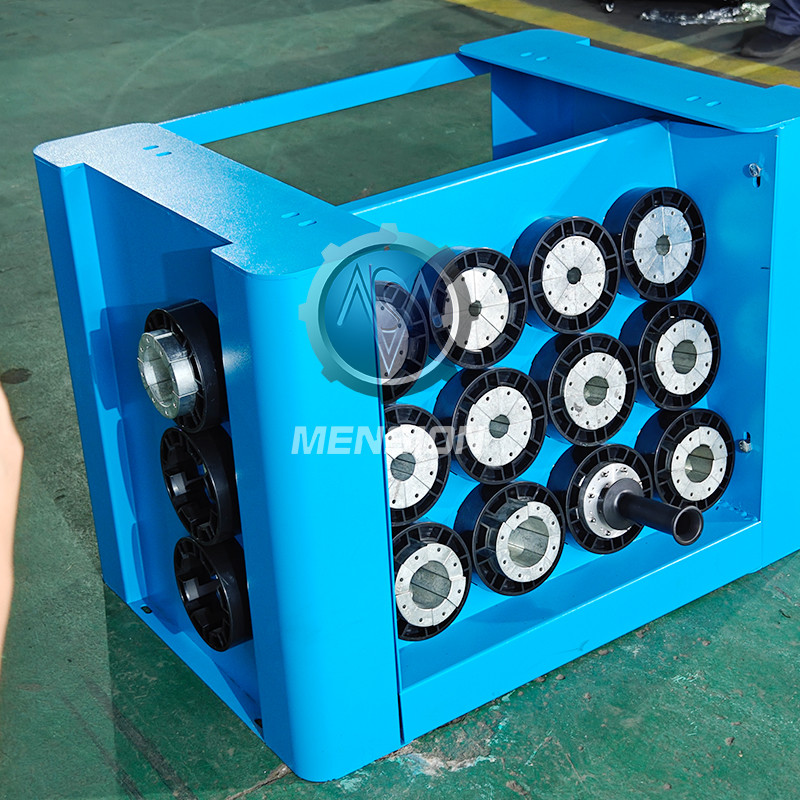

Quick change tool and die sets rack for P32NC
-
