CE RoHS Certified Factory for Hydraulic Hose Crimper Hydraulic Hose Crimping Machine to Crimp Hose Assembly
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14-87mm | Hose Size | 1/4-2.5inch |
|---|---|---|---|
| Die Sets | 13 | Color | Blue |
| Max. Opening | 31mm | Crimping Force | 650T |
| System Pressure | 31.5Mpa | Power | 3.75KW |
| Size | 650*550*1360mm | Weight | 310Kg |
| Highlight | 650T Crimping Force Hydraulic Hose Crimping Machine,13 Die Sets Hose Crimper,CE RoHS Certified Hydraulic Crimper |
||
Product Description

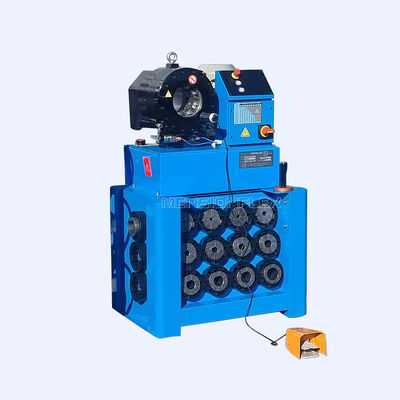

MS-P32 Hydraulic Hose Crimping Machine
The MS-P32 hydraulic hose crimping machine is engineered for high-pressure hydraulic tensile hose assembly, supporting sizes from 1/4 inch to 2 1/2 inch with 4-layer or 6-layer pressing capabilities.
Product Overview
This industrial-grade hose crimper features 13 die sets covering a range from 14mm to 69mm. Each die set offers specific crimping ranges to ensure optimal performance and precision in hydraulic hose assembly operations.
With its compact yet powerful design, the MS-P32 delivers exceptional crimping force and is widely utilized in hydraulic hose manufacturing facilities, excavator repair workshops, hydraulic machinery maintenance centers, and industrial equipment service operations.
Key Advantages
- Rexroth valve system for maximum crimping force and extended service life
- Quick-change tool system for die sets to enhance operational efficiency
- Foot pedal operation for hands-free handling of large diameter hoses
- Italian hydraulic pump with global after-sales service support
- Siemens motor for superior quality and operational stability
- Emergency stop device for operator safety protection
- Eaton electric switch with high safety certification standards
Technical Specifications
| Model | MS-P32 Hydraulic Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2 1/2 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |

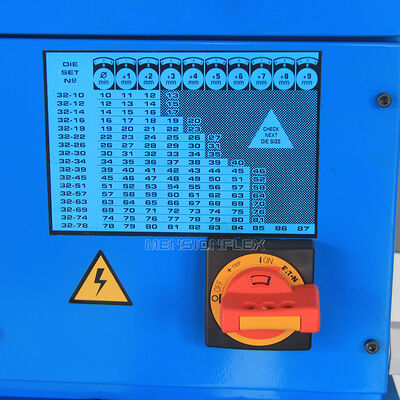

P32 Crimping Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
Important Notes
- "*" indicates non-standard die sets
- Customized die sets available upon request
- Special voltage options: 110V, 208V, 240V, 415V
- Customized die sets available upon request
- Special voltage options: 110V, 208V, 240V, 415V
Premium Components

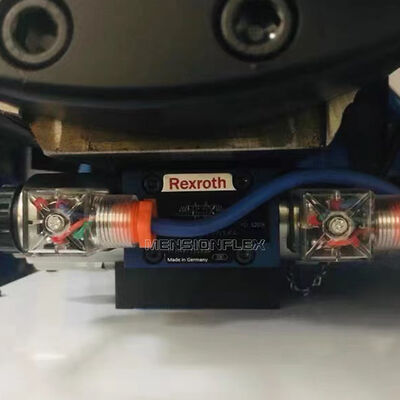

REXROTH VALVE, FROM GERMANY CE QUALITY
EATON ELECTRIC SWITCH, IRELAND QUALITY, HIGH SAFETY LEVEL

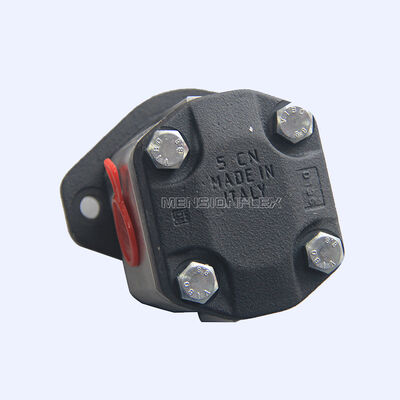

ITALIAN HYDRAULIC PUMP, HIGH STABILITY
Applications
The MS-P32 hose pressing machine is a high-performance industrial solution capable of crimping various materials including high-pressure stainless steel braided hydraulic rubber hose, industrial hose assemblies, cables and wires, steel and iron tubes, automotive brake lines, and air suspension systems.
Operation Demonstration
How to use MS-P32 for hydraulic hose crimping:
