Specifications
Highlight:
Manual Hydraulic Hose Crimping Machine
,150T Hose Crimper
,Portable P16 Hose Crimper
Crimping Range:
14 - 45mm
Hose Size:
1/4 - 1inch
Die Sets:
7
Color:
Blue
Max. Opening:
20mm
Crimping Force:
150T
System Pressure:
31.5Mpa
Power:
Hand Pump
Size:
400*320*300mm
Weight:
32Kg
Product Name:
P16 Hose Crimper
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P16
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

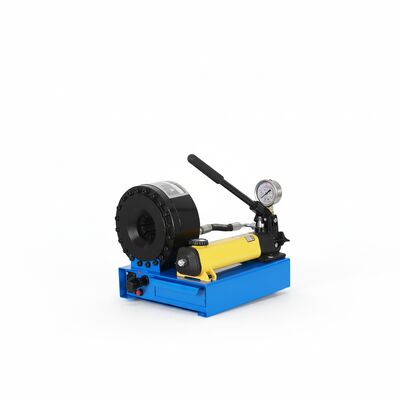

P16HP Manual Hose Crimping Machine
The MS-P16 is a manually operated hydraulic hose crimping machine designed for portability and reliability. With its lightweight construction, this crimper can be easily transported to any location, making it the ideal choice for hose assembly crimping in areas without electricity supply.
Key Advantages
- Famous "ENERPAC" hydraulic valve for high stability and reliability
- Simple design that's easy for novice operators
- Powerful crimping force capable of handling up to 4 steel wire hoses
- High productivity with efficient operation
- Low maintenance cost for long-term value
Technical Specifications
| Model | P16 Hose Crimper Machine |
|---|---|
| Crimping Range | 14 - 47 mm |
| Crimping Force | 150 Tons |
| Hose Size | 1/4 - 1 inch |
| Max. Opening | 20 mm |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control | MS |
| Standard Voltage | Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 mm |
| Width | 320 mm |
| Height | 300 mm |
| Weight | 32 KG |
P16 Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 ... 8mm | 55 |
| 8* | 8 ... 10mm | 55 |
| 10* | 10 ... 12mm | 55 |
| 12* | 12 ... 14mm | 55 |
| 14 | 14 ... 16mm | 55 |
| 16 | 16 ... 19mm | 55 |
| 19 | 19 ... 23mm | 55 |
| 23 | 23 ... 27mm | 55 |
| 27 | 27 ... 31mm | 55 |
| 31 | 31 ... 35mm | 65 |
| 35 | 35 ... 41mm | 65 |
Important Notes
• "*" indicates non-standard die sets
• Customized die sets are available upon request
• Maximum opening refers to the stroke between fully closed and fully opened die sets
• Customized die sets are available upon request
• Maximum opening refers to the stroke between fully closed and fully opened die sets
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
- Electric Crimper Conversion
Product Features
