Specifications
Highlight:
1 inch manual hydraulic hose crimper
,25mm portable hose crimping machine
,CE certified P16 hydraulic crimper
Crimping Range:
14 - 45mm
Hose Size:
1/4 - 1inch
Die Sets:
7
Color:
Blue
Max. Opening:
20mm
Crimping Force:
150T
System Pressure:
31.5Mpa
Power:
Hand Pump
Size:
400*320*300mm
Weight:
32Kg
Product Name:
P16 Hose Crimper
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P16
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

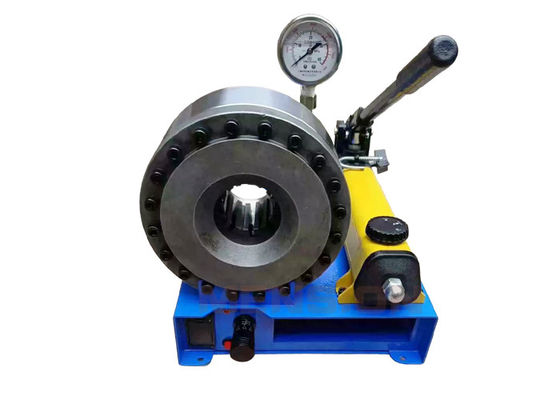

P16HP Manual Hydraulic Hose Crimping Machine
MS-P16HP hydraulic crimping machine a small portable hose crimper among all the crimpers
It is light weight, only 35KG without oil, so can be take to any places that you need
This hose pressing machine can operate without motor, so if you need to do hose making work in the wild, it will be a good choice
MS-P16HP is offered with 7 die sets, range from 10mm to 27mm
There is pressure guage on the crimper, so you can monitoring the system pressure real time
It is suitable for hose up to 1 inch 2 wires, if your hose is bigger, you will need to choose a bigger size hose crimping machine
It is light weight, only 35KG without oil, so can be take to any places that you need
This hose pressing machine can operate without motor, so if you need to do hose making work in the wild, it will be a good choice
MS-P16HP is offered with 7 die sets, range from 10mm to 27mm
There is pressure guage on the crimper, so you can monitoring the system pressure real time
It is suitable for hose up to 1 inch 2 wires, if your hose is bigger, you will need to choose a bigger size hose crimping machine
Key Advantages
- Famous "ENERPAC" hydraulic valve for high stability and reliability
- Simple design that's easy for novice operators
- Substantial crimping force capable of handling up to 4 steel wire hoses
- High productivity with efficient operation
- Low maintenance cost for long-term value
Technical Specifications
| Model | P16 Hose Crimper Machine |
| Crimping Range | 14 - 47 mm |
| Crimping Force | 150 Tons |
| Hose Size | 1/4 - 1 inch |
| Maximum Opening | 20 mm |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Length | 400 mm |
| Width | 320 mm |
| Height | 300 mm |
| Weight | 32 kg |
P16 Crimper Die Sets
| Die Number | Crimping Range | Length |
|---|---|---|
| 6* | 6 ... 8 mm | 55 |
| 8* | 8 ... 10 mm | 55 |
| 10* | 10 ... 12 mm | 55 |
| 12* | 12 ... 14 mm | 55 |
| 14 | 14 ... 16 mm | 55 |
| 16 | 16 ... 19 mm | 55 |
| 19 | 19 ... 23 mm | 55 |
| 23 | 23 ... 27 mm | 55 |
| 27 | 27 ... 31 mm | 55 |
| 31 | 31 ... 35 mm | 65 |
| 35 | 35 ... 41 mm | 65 |
Important Notes
- "*" indicates non-standard die sets
- Customized die sets are available upon request
- Maximum opening refers to the stroke between fully closed and fully opened die sets
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
- Electric Crimper Conversion
Product Features
Famous "ENERPAC" hydraulic oil pump for reliable performance
Precision die sets for hydraulic hose assembly pressing
Secure packaging with plywood case, fumigation-free
