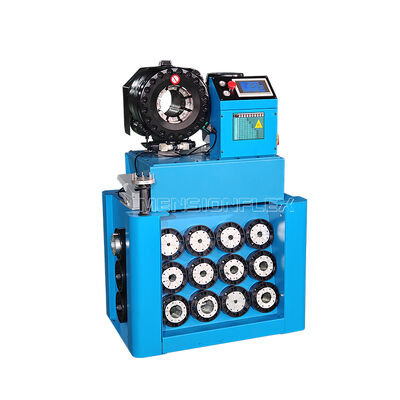

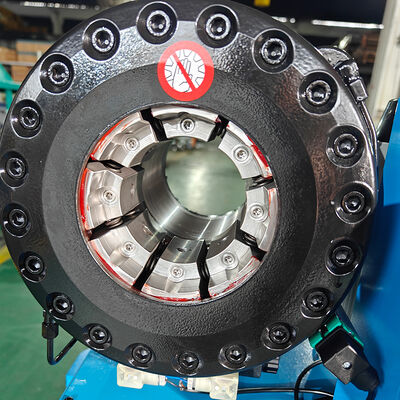

CNC Control Hose Pressing Machine P32NC Hydraulic Hose Crimping Machine for Hydraulic Hose Producing Factory with 13 Die Sets
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14-87mm | Hose Size | 1/4-2 1/2inch |
|---|---|---|---|
| Die Sets | 13 | Color | Blue/White |
| Max. Opening | 31mm | Crimping Force | 650T |
| System Pressure | 31.5Mpa | Power | 4KW |
| Size | 650*550*1360mm | Weight | 310Kg |
Product Description
MS-P32NC Automatic Hydraulic Hose Crimping Machine
The MS-P32NC hose crimping machine is ideal for making hydraulic hose assembly for large production. This hose crimper is with 13 die sets, range from 14mm to 69mm, can press flexible high pressure hose from 1/4 inch to 1 1/2 inch and swage low pressure industrial hose up to 3 inch. Even extreme high pressure 6 wires hoses can be crimped with this powerful hydraulic crimping machine.
Product Overview
With its compact yet powerful design, the MS-P32NC hose pressing machine delivers exceptional crimping force and is widely utilized in hydraulic hose manufacturing facilities, excavator hydraulic oil hose repair workshops, hydraulic machinery maintenance centers, and industrial equipment service operations.
Key Advantages
- Japanese NACHI valve system for maximum crimping force and extended service life
- Quick-change tool system for die sets to enhance operational efficiency
- Foot pedal operation for hands-free handling of large diameter hoses
- Italian electric ruler with high accuracy and CE certified spare parts
- Siemens motor is optional for our hose crimpers
- Emergency stop device for operator safety protection
- Eaton electric switch with high safety certification standards
Technical Specifications
| Model | MS-P32NC Hydraulic Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2 1/2 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 4 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
Important Notes
- "*" indicates non-standard die sets
- Customized die sets available upon request
- Special voltage options: 110V, 208V, 240V, 415V
- Customized die sets available upon request
- Special voltage options: 110V, 208V, 240V, 415V
Premium Components
JAPANESE NACHI VALVE, FROM GERMANY CE QUALITY
EATON ELECTRIC SWITCH, IRELAND QUALITY, HIGH SAFETY LEVEL
ITALIAN HYDRAULIC PUMP, HIGH STABILITY
Applications
The MS-P32 hose pressing machine is a high-performance industrial solution capable of crimping various materials including high-pressure stainless steel braided hydraulic rubber hose, industrial hose assemblies, cables and wires, steel and iron tubes, automotive brake lines, and air suspension systems.
Operation Demonstration
How to use MS-P32NC for hydraulic hose crimping:
