Specifications
Highlight:
12V 24V hydraulic hose crimper
,2 inch hydraulic crimping machine
,wholesale hydraulic hose crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
280T
Control:
MS
Power:
2.2KW
Size:
630*540*420mm
Weight:
150Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P32CS
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

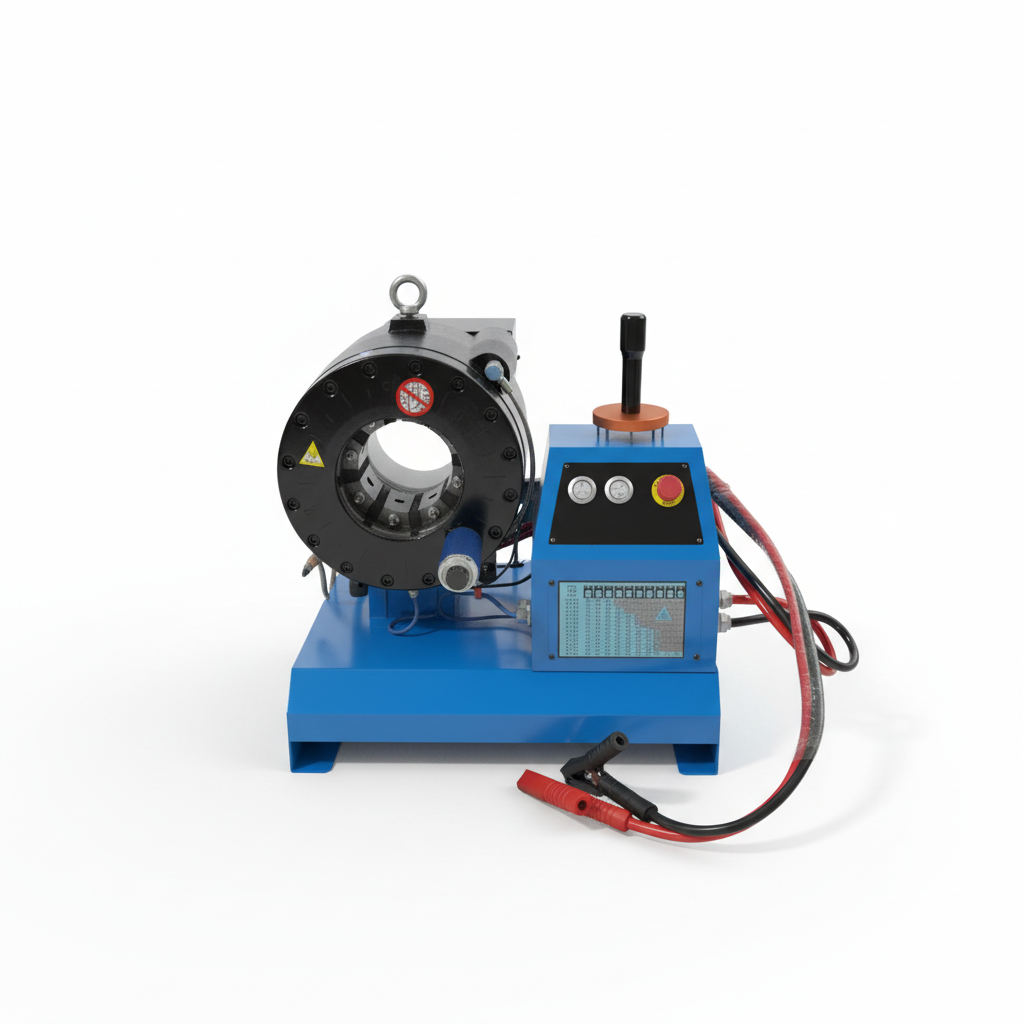

12V/24V 2" Mobile Hydraulic Hose Crimping Machine
Wholesale pricing available for industrial distributors and service providers.
24V Mobile Hydraulic Hose Crimping Machine - MS-P32CS
The MS-P32CS cable crimping machine is a specialized 24V hydraulic hose crimper powered by automotive electrical systems, making it the ideal solution for on-site crimping operations with mobile service vehicles.
Key Features
- Mobile operation capability for on-site crimping with service vehicles
- High-quality components with extensive crimping range
- Rapid crimping and opening cycles for enhanced productivity
Technical Specifications
| Model | MS-P32CS Hydraulic Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 280 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 24 (V) |
| Motor Power | 2.2 (KW) |
| Length | 630 (mm) |
| Width | 540 (mm) |
| Height | 420 (mm) |
| Weight | 150 (KG) without oil |
P32 Crimping Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 76mm | 110 |
| 74* | 74 - 80mm | 110 |
| 78* | 78 - 87mm | 110 |
Notes:
- "*" indicates non-standard die sets
- Customized die sets are available upon request
- 12V voltage option is available
- "*" indicates non-standard die sets
- Customized die sets are available upon request
- 12V voltage option is available
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
Double Bevel Crimping Die Base
One-piece oil cylinder with double bevel die base design provides exceptional accuracy and crimping force for reliable performance.
High Hardness Die Sets
13 specialized die sets accommodate hose sizes from 1/4 to 2 inches, engineered for high-pressure applications with superior durability.
Precision Micrometer Control
High-precision micrometer with excellent stability enables easy diameter setting and features a large, readable scale for accurate adjustments.
Premium Raw Steel Materials
Applications
This versatile crimping machine is suitable for hydraulic high-pressure oil rubber hose assembly manufacturing, low-pressure water or air pipe pressing, steel tube and iron tube swaging, wire rope and cable pressing, and lock device fabrication.
