Specifications
Highlight:
150T Crimping Force Hydraulic Hose Crimper
,Portable Hose Crimping Machine
,CE Certified P16 Hose Crimper
Crimping Range:
14 - 45mm
Hose Size:
1/4 - 1inch
Die Sets:
7
Color:
Blue
Max. Opening:
20mm
Crimping Force:
150T
System Pressure:
31.5Mpa
Power:
Hand Pump
Size:
400*320*300mm
Weight:
32Kg
Product Name:
P16 Hose Crimper
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P16
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

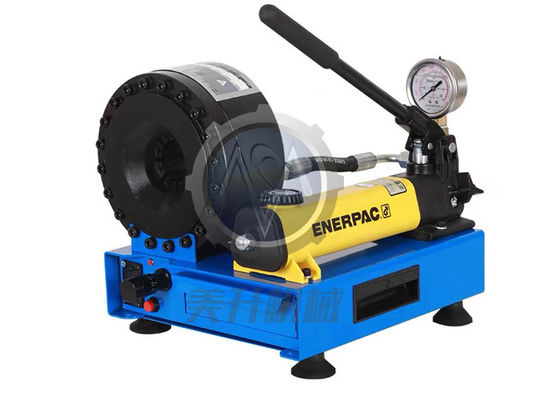

CE Certified P16 150T Portable Hydraulic Hose Crimper
MS-P16HP hydraulic crimping machine a small portable hose crimper among all the crimpers
It is light weight, only 35KG without oil, so can be take to any places that you need
This hose pressing machine can operate without motor, so if you need to do hose making work in the wild, it will be a good choice
MS-P16HP is offered with 7 die sets, range from 10mm to 27mm
There is pressure guage on the crimper, so you can monitoring the system pressure real time
It is suitable for hose up to 1 inch 2 wires, if your hose is bigger, you will need to choose a bigger size hose crimping machine
It is light weight, only 35KG without oil, so can be take to any places that you need
This hose pressing machine can operate without motor, so if you need to do hose making work in the wild, it will be a good choice
MS-P16HP is offered with 7 die sets, range from 10mm to 27mm
There is pressure guage on the crimper, so you can monitoring the system pressure real time
It is suitable for hose up to 1 inch 2 wires, if your hose is bigger, you will need to choose a bigger size hose crimping machine
Key Advantages
- ENERPAC hydraulic valve for exceptional stability and reliability
- Simple, intuitive design perfect for novice operators
- Powerful 150-ton crimping force handles up to 4 steel wire hoses
- High productivity with consistent performance results
- Low maintenance requirements for long-term cost efficiency
Technical Specifications
| Model | P16 Hose Crimper Machine |
|---|---|
| Crimping Range | 14 - 47 mm |
| Crimping Force | 150 Tons |
| Hose Size | 1/4 - 1 inch |
| Maximum Opening | 20 mm |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control System | MS |
| Power Source | Manual Pump |
| Dimensions (L×W×H) | 400 × 320 × 300 mm |
| Weight | 32 kg |
P16 Crimper Die Sets
| Die Number | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 mm |
| 8* | 8 - 10 mm | 55 mm |
| 10* | 10 - 12 mm | 55 mm |
| 12* | 12 - 14 mm | 55 mm |
| 14 | 14 - 16 mm | 55 mm |
| 16 | 16 - 19 mm | 55 mm |
| 19 | 19 - 23 mm | 55 mm |
| 23 | 23 - 27 mm | 55 mm |
| 27 | 27 - 31 mm | 55 mm |
| 31 | 31 - 35 mm | 65 mm |
| 35 | 35 - 41 mm | 65 mm |
Important Notes:
• "*" indicates non-standard die sets
• Customized die sets are available upon request
• Maximum opening refers to the stroke between fully closed and fully opened die sets
• "*" indicates non-standard die sets
• Customized die sets are available upon request
• Maximum opening refers to the stroke between fully closed and fully opened die sets
Available Options
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
- Electric Crimper Version
Product Features
High-quality ENERPAC hydraulic oil pump for reliable performance
Precision die sets for hydraulic hose assembly pressing
Secure packaging with plywood case, fumigation-free
Crimping Samples
Overall Rating
5 star
67%
4 star
33%
3 star
0
2 star
0
1 star
0
All Reviews
-
I really like this tool; it allows me to fabricate hydraulic lines right in the workshop. I did have to wait an extra five days for the custom-made special dies. Overall, I think this crimper offers excellent value for money.
-
AUsed this P16 crimper daily for months. No leaks, no failures, crimps hold great under high pressure. Perfect for small-batch assembly and emergency repairs.
-
AReliable quality, easy to use, a great helper for starting a business.
