Specifications
Highlight:
650T Crimping Force Hydraulic Hose Crimping Machine
,13 Die Sets Hose Crimper
,31.5Mpa System Pressure Hydraulic Crimper
Crimping Range:
14-87mm
Hose Size:
1/4-2 1/2inch
Die Sets:
13
Color:
Blue/White
Max. Opening:
31mm
Crimping Force:
650T
System Pressure:
31.5Mpa
Power:
4KW
Size:
650*550*1360mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P32NC
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

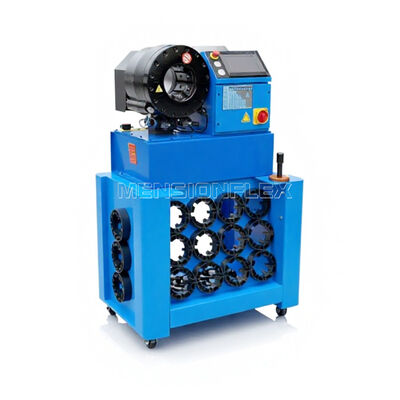

MS-P32NC Hydraulic Hose Crimping Machine
The MS-P32NC hydraulic hose crimping machine is renowned for its high productivity and stable performance. Featuring substantial crimping force and an intuitive soft touch screen interface, this machine offers easy operation. Its double conical cylinder structure provides exceptional crimping capacity, enabling it to press extreme high-pressure R13 or R15 rubber hoses with thick ferrules.
Product Overview
With its compact yet powerful design, the MS-P32NC delivers exceptional crimping force and is widely utilized in hydraulic hose manufacturing facilities, excavator hydraulic oil hose repair workshops, hydraulic machinery maintenance centers, and industrial equipment service operations.
Key Advantages
- Germany REXROTH valve system for maximum crimping force and extended service life
- Quick-change tool system for die sets to enhance operational efficiency
- Foot pedal operation for hands-free handling of large diameter hoses
- Italian electric ruler with high accuracy and CE certified spare parts
- SIEMENS motor available as optional upgrade
- Emergency stop device for operator safety protection
- Eaton electric switch with high safety certification standards
Technical Specifications
| Model | MS-P32NC Hydraulic Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2 1/2 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 4 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
P32NC Crimping Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
* indicates non-standard die sets
Customized die sets available upon request. Special voltage options: 110V, 208V, 240V, 415V
Premium Components
GERMANY REXROTH VALVE, FROM GERMANY CE QUALITY
EATON ELECTRIC SWITCH, IRELAND QUALITY, HIGH SAFETY LEVEL
ITALIAN HYDRAULIC PUMP, HIGH STABILITY
Applications
The MS-P32 hose pressing machine is a high-performance industrial solution capable of crimping various materials including high-pressure stainless steel braided hydraulic rubber hose, industrial hose assemblies, cables and wires, steel and iron tubes, automotive brake lines, and air suspension systems.
