4KW High Pressure Hydraulic Hose Crimping Machine
,61mm High Pressure Hose Crimper

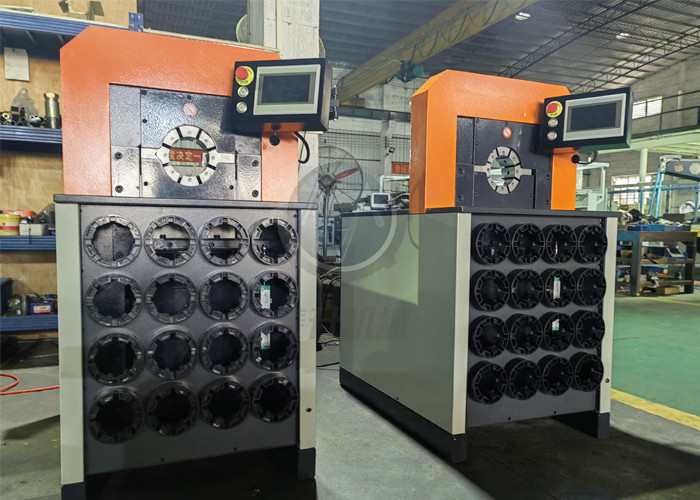

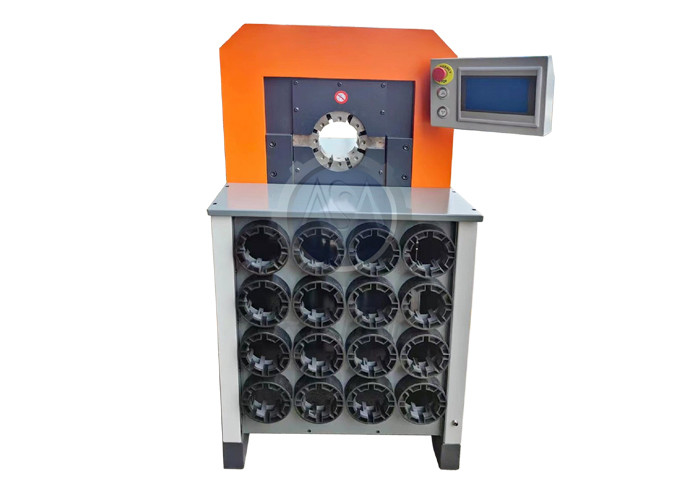

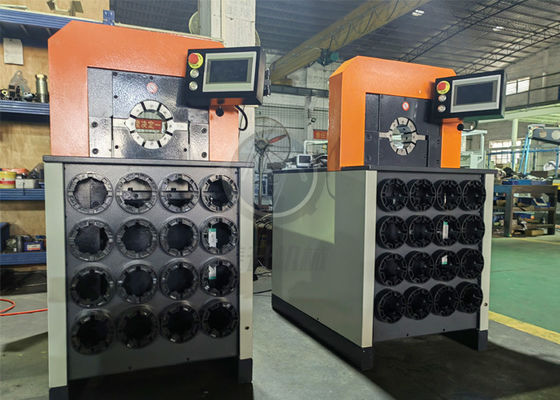

CONSTRUCTION MACHINERY HYDRAULIC HOSE CRIMPER P150
DESCRIPTION
MS-P150 hose crimping machine support hydraulic and industrial pipe and cable pressing, such as excavator, loader hydraulic hose assembly fabricating. It is the ideal choice for machinery repair workshop or hydraulic hose assembly making store.
With thin crimping head, the big elbow fitting can be crimped easily. The hose pressing machine is with standard 14 die sets which have high hardness. The hose assembly after crimping do not have the problem of oil leakage or small-big head problem.
ADVANTAGES
► Advanced cnc control system, crimping with more intelligent;
► Emergency stop device, enable safe hydraulic hose crimping work;
► The control panel can be easily rotate to any place that need;
► Very easy when doing maintenance.
TECHNICAL DATA
|
Model |
MS-P150 Hydraulic Crimping Hose Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
780 (T) |
|
Hose Size |
1/4 - 3 (inch) 6 Spiral |
|
Max. Opening |
61 (mm) |
|
Die Sets |
14 |
|
Die Set Type |
P150 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
UC |
|
Standard Voltage |
380 (V) Three Phase |
|
Motor Power |
3.75 (KW) |
|
Length |
720 (mm) |
|
Width |
970 (mm) |
|
Height |
1600 (mm) |
|
Weight |
1020 (KG) |
P150 HYDRAULIC HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6 * |
6 ... 8mm |
55mm |
|
8 * |
8 ... 10mm |
55mm |
|
10 * |
10 ... 12mm |
55mm |
|
12 * |
12 ... 14mm |
55mm |
|
14 |
14 ... 16mm |
55mm |
|
16 |
16 ... 19mm |
55mm |
|
19 |
19 ... 22mm |
55mm |
|
22 |
22 ... 26mm |
70mm |
|
26 |
26 ... 30mm |
70mm |
|
30 |
30 ... 34mm |
70mm |
|
34 |
34 ... 39mm |
75mm |
|
39 |
39 ... 45mm |
75mm |
|
45 |
45 ... 51mm |
90mm |
|
51 |
51 ... 57mm |
90mm |
|
57 |
57 ... 63mm |
100mm |
|
63 |
63 ... 69mm |
110mm |
|
69 |
69 ... 74mm |
110mm |
| 74 | 74 ... 80mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
NOTE
• " * " for non standard mold
• Crimping range is based on standard mold
• Customized die sets with different shape and size are available
• Customized voltage 110V, 208V, 220V, 240V, 415V are availbale
APPLICATIONS OF P150 HOSE PRESSING MACHINE
P150 hose crimping machine can be used for hydraulic hose fitting ferrule assembly fabricating, industrial pipe and cable pressing, wires and ropes swaging connecting, steel tube crimping, automotive components jointing and cable transfer work in the marine.
-
