Hydraulic Hose Crimping Machine with 640T Crimping Force 14-87mm Range and 10 Die Sets for Rubber Hose Assembly

  • Hydraulic Hose Crimping Machine with 640T Crimping Force 14-87mm Range and 10 Die Sets for Rubber Hose Assembly
  • Hydraulic Hose Crimping Machine with 640T Crimping Force 14-87mm Range and 10 Die Sets for Rubber Hose Assembly
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS - DX69
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms PayPal,T/T,WU,MG
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 2inch 4SH
Die Sets 10 Color Blue
Max. Opening 25mm Crimping Force 640T
Product Name MS - DX69 Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW / 4KW
Size 630*450*560mm Weight 190Kg
Highlight

640T Crimping Force Hydraulic Hose Crimping Machine

,

31.5Mpa System Pressure Hydraulic Pipe Pressing Machine

,

14-87mm Crimping Range Hose Assembly Making Machine
Leave a Message
Product Description
Hydraulic Pipe Pressing Machine DX69 Rubber Hose Assembly Making Machine
64mm Hydraulic Pipe Pressing Machine DX69 For Rubber Hose Assembly Making

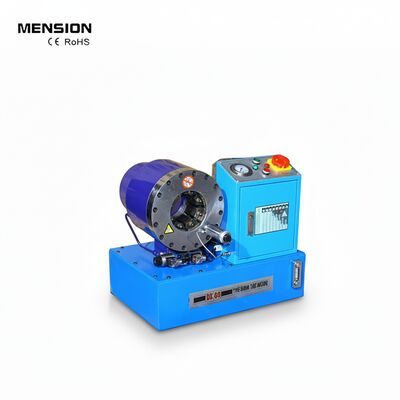

HYDRAULIC HOSE CRIMPING PRESS MACHINE MS - DX69
MS-DX69 is renowned for its high speed and precision crimping capabilities. This machine is designed for crimping hydraulic hose and fittings ranging from 1/4" to 2" with four to six steel wire braided construction. Available in single phase or three phase configurations to meet your specific requirements.
KEY FEATURES
  • Precise crimping with substantial force
  • High stability with quality components
  • Operator-friendly design for ease of use
  • Simple operation with enhanced safety features
  • Hydraulic back positioning system
TECHNICAL SPECIFICATIONS
Model DX-69 Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 640 (T)
Hose Size 1/4 - 2 (inch) 4 Layers
Max. Opening 25 (mm)
Die Sets 10
Die Set Type 69
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 3 (KW) / 4 (KW)
Length 630 (mm)
Width 450 (mm)
Height 560 (mm)
Weight 190 (KG)
Hydraulic Hose Crimping Machine with 640T Crimping Force 14-87mm Range and 10 Die Sets for Rubber Hose Assembly 0
69 CRIMPER DIE SETS
Die No. Crimping Range Length
6* 6 - 8 mm 35
8* 8 - 10 mm 35
10* 10 - 12 mm 35
12* 12 - 14 mm 35
14 14 - 16 mm 60
16 16 - 20 mm 60
20 20 - 22 mm 60
22 22 - 26 mm 60
26 26 - 30 mm 70
30 30 - 38 mm 70
38 38 - 46 mm 70
46 46 - 54 mm 80
54 54 - 64 mm 80
64 64 - 69 mm 80
69* 69 - 76 mm 100
Important Notes:
1) Customized die sets are available upon request
2) Special voltage options: 110V, 208V, 240V, 415V
3) * indicates non-standard die sets
STANDARD DELIVERY INCLUDES
  • Hose Crimping Machine
  • Foot Pedal
  • 10 Die Sets
  • Operation Manual
  • Consumable Accessories
OPTIONAL ACCESSORIES
  • Quick Change Tool
  • Quick Change Die Set Rack
  • UC Control System
Hydraulic Hose Crimping Machine with 640T Crimping Force 14-87mm Range and 10 Die Sets for Rubber Hose Assembly 1
