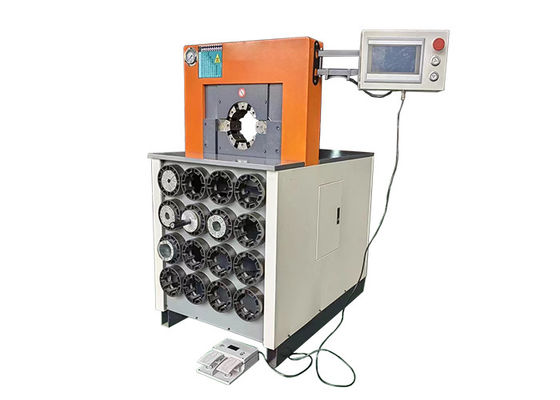

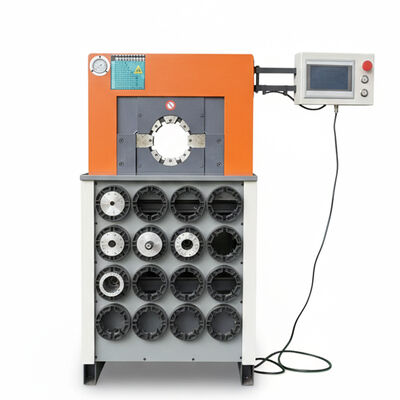

Hydraulic Hose Crimping Machine With 780T Crimping Force 14 Die Sets And Large Opening 61mm CNC Hose Crimping Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14 - 87mm | Hose Size | 1/4 - 2 1/2 Inch |
|---|---|---|---|
| Die Sets | 14 | Color | Grey And Orange |
| Max. Opening | 61mm | Crimping Force | 780T |
| System Pressure | 31.5Mpa | Power | 3.75KW |
| Size | 720*970*1600mm | Weight | 1020Kg |
| Model | P150 Hose Crimper | ||
| Highlight | 780T Crimping Force Hose Crimper,14 Die Sets Hydraulic Crimper,Large Opening 61mm Hydraulic Hose Crimping Machine |
||
Product Description
MS-P150 Heavy Duty Hydraulic Hose Crimping Machine
The MS-P150 is a heavy-duty hydraulic crimping machine designed for extreme high-pressure applications. With superior crimping force, it's ideal for assembling 2-inch 6 tensile steel spiraled hydraulic rubber hoses, especially when pressing large elbow fittings and couplings.
Key Advantages
- High-stability microcomputer control system maintains optimal performance even after years of use
- Quick-change mold system with self-designed fork for improved working efficiency
- Large foot pedal design for convenient handling of large diameter hoses
- Premium quality die sets and hydraulic cylinder ensure long service life with low maintenance costs
Technical Specifications
| Model | MS-P150 AC Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 mm |
| Crimping Force | 780 Tons |
| Hose Size | 1/4 - 2 1/2 inch 6 Spiral |
| Max. Opening | 61 mm |
| Die Sets | 14 |
| Die Set Type | P150 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control | UC |
| Standard Voltage | 380 V Three Phase |
| Motor Power | 3.75 KW |
| Length | 720 mm |
| Width | 970 mm |
| Height | 1600 mm |
| Weight | 1020 KG |
P150 Hose Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6 * | 6 ... 8mm | 55mm |
| 8 * | 8 ... 10mm | 55mm |
| 10 * | 10 ... 12mm | 55mm |
| 12 * | 12 ... 14mm | 55mm |
| 14 | 14 ... 16mm | 55mm |
| 16 | 16 ... 19mm | 55mm |
| 19 | 19 ... 22mm | 55mm |
| 22 | 22 ... 26mm | 70mm |
| 26 | 26 ... 30mm | 70mm |
| 30 | 30 ... 34mm | 70mm |
| 34 | 34 ... 39mm | 75mm |
| 39 | 39 ... 45mm | 75mm |
| 45 | 45 ... 51mm | 90mm |
| 51 | 51 ... 57mm | 90mm |
| 57 | 57 ... 63mm | 100mm |
| 63 | 63 ... 69mm | 110mm |
| 69 | 69 ... 74mm | 110mm |
| 74 | 74 ... 80mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
• "*" indicates non-standard mold
• Crimping range is based on standard mold
• Customized die sets with different shapes and sizes available
• Customized voltages (110V, 208V, 220V, 240V, 415V) available
• Crimping range is based on standard mold
• Customized die sets with different shapes and sizes available
• Customized voltages (110V, 208V, 220V, 240V, 415V) available

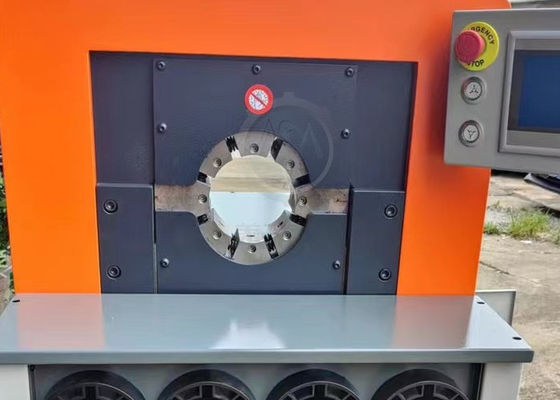

Advanced Crimping Head Design
Unlike traditional hydraulic crimping units, the P150 utilizes vertical movement technology for dies and master die, making positioning easier and enabling the crimping of large elbow or shaped fittings.
Premium Die Set Processing
All die sets undergo surface polishing treatment after high-frequency processing, protecting the galvanized layer of couplings during pressing to enhance the hose assembly's anti-rust capabilities.
Quick Change Tool and Machine Rack
Designed for convenient die set changes and safe storage, this feature significantly improves productivity and workflow efficiency.
Large Double-Use Foot Pedal
The oversized foot pedal frees both of the operator's hands, improving working efficiency with dual functionality for controlling both closing and opening operations, making hose assembly crimping more efficient.
Applications
The P150 hose crimper is specifically designed for hydraulic high-pressure hoses with large elbow fittings. It's widely used for car AC hoses, hydraulic oil hoses, air hoses, water pipes, industrial hoses, and wire and cable crimping applications.
