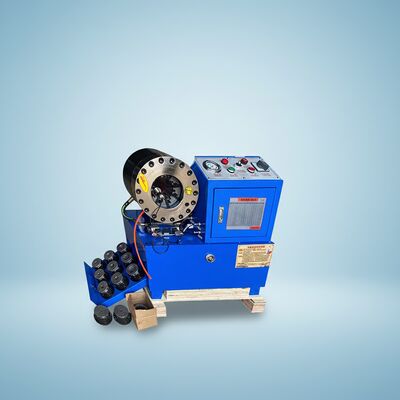

Automatic 500T Hydraulic Hose Crimping Machine with Wide Crimping Range 14-87mm for Industrial Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14 - 87mm | Hose Size | 1/4 - 2inch |
|---|---|---|---|
| Die Sets | 10 | Color | Blue |
| Max. Opening | 30mm | Crimping Force | 500T |
| Product Name | MS-51 Rubber Hose Crimping Machine | Application | Workshop |
| System Pressure | 31.5Mpa | Power | 3KW |
| Size | 670*430*820mm | Weight | 260Kg |
| Highlight | 500T Crimping Force Hydraulic Hose Crimping Machine,Automatic Mode Rubber Hose Crimping Machine,Wide Crimping Range 14-87mm Hose Crimper |
||
Product Description
MS-51 Hydraulic Hose Crimping Machine
Product Overview
The MS-51 hose crimper machine is renowned for its extensive crimping range and cost-effectiveness. Featuring a multifunctional operating panel that easily switches between automatic and semi-automatic modes, this machine includes a shockproof pressure gauge for real-time pressure monitoring during crimping operations.
Main Features
- Fully automatic crimping operation with automatic opening function
- Wide crimping range from 6mm to 51mm
- Audible signal indicates when preset diameter is achieved
- Dual-function foot pedal for enhanced operation control
- Anti-dust sponge protection for die base maintenance
Technical Specifications
| Model | MS-51 Hydraulic Crimping Machine |
| Crimping Range | 14-87 mm |
| Crimping Force | 500 T |
| Hose Size | 1/4 - 2 inch |
| Max. Opening | 30 mm |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.05 mm |
| Control | MS |
| Standard Voltage | 220V / 380V |
| Motor Power | 3 KW |
| Length | 670 mm |
| Width | 430 mm |
| Height | 820 mm |
| Weight | 260 KG |
51 Hose Crimper Die Sets
| Die No. | Crimping (mm) | Length (mm) |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 90 |
Important Notes
- "*" indicates non-standard die sets
- Customized die sets available upon request
- Special voltage options: 110V, 208V, 240V, 415V
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
Key Components & Features
Block for Connecting Valve System
Multifunctional Operating Panel
Crimping Diameter Control Micrometer
High Hardness Molds with Long Service Life
Fast Delivery Within 2 to 7 Days
Crimping Machine for Hydraulic Hose Assembly Manufacturing
