Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14 - 45mm | Hose Size | 1/4 - 1inch |
|---|---|---|---|
| Die Sets | 7 | Color | Blue |
| Max. Opening | 20mm | Crimping Force | 150T |
| System Pressure | 31.5Mpa | Power | Hand Pump |
| Size | 400*320*300mm | Weight | 32Kg |
| Product Name | P16 Hose Crimper | ||
| Highlight | Manual Hydraulic Hose Crimping Machine,150T Hose Crimper,Portable P16 Hose Crimper |
||
Product Description

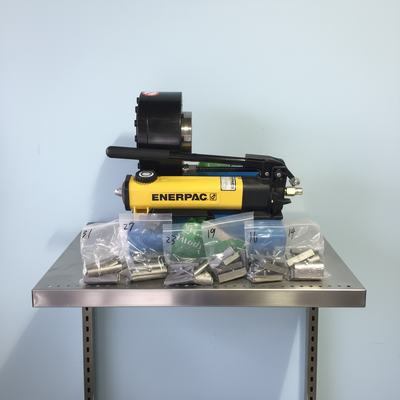

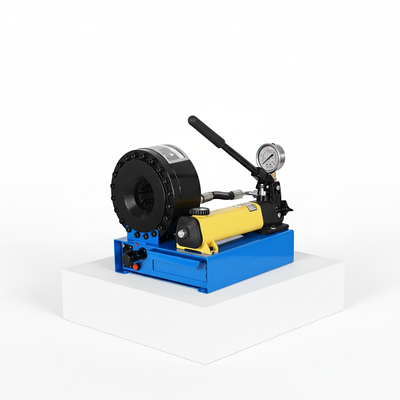

P16HP Manual Hydraulic Hose Crimping Machine
MS-P16 is a manually operated hose crimping machine designed for portability and reliability. With its lightweight construction, it can be easily transported to any location requiring hose assembly crimping, making it the ideal solution for job sites without electricity supply.
Key Advantages
- Famous "ENERPAC" hydraulic valve for high stability and reliability
- Simple design that's easy for novice operators
- Substantial crimping force capable of handling up to 4 steel wire hoses
- High productivity with efficient operation
- Low maintenance cost for long-term value
Technical Specifications
| Model | P16 Hose Crimper Machine |
| Crimping Range | 14 - 47 mm |
| Crimping Force | 150 Tons |
| Hose Size | 1/4 - 1 inch |
| Maximum Opening | 20 mm |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Length | 400 mm |
| Width | 320 mm |
| Height | 300 mm |
| Weight | 32 kg |
P16 Crimper Die Sets
| Die Number | Crimping Range | Length |
|---|---|---|
| 6* | 6 ... 8 mm | 55 |
| 8* | 8 ... 10 mm | 55 |
| 10* | 10 ... 12 mm | 55 |
| 12* | 12 ... 14 mm | 55 |
| 14 | 14 ... 16 mm | 55 |
| 16 | 16 ... 19 mm | 55 |
| 19 | 19 ... 23 mm | 55 |
| 23 | 23 ... 27 mm | 55 |
| 27 | 27 ... 31 mm | 55 |
| 31 | 31 ... 35 mm | 65 |
| 35 | 35 ... 41 mm | 65 |
Important Notes
- "*" indicates non-standard die sets
- Customized die sets are available upon request
- Maximum opening refers to the stroke between fully closed and fully opened die sets
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
- Electric Crimper Conversion
Product Features
Famous "ENERPAC" hydraulic oil pump for reliable performance
Precision die sets for hydraulic hose assembly pressing
Secure packaging with plywood case, fumigation-free
Crimping Samples
