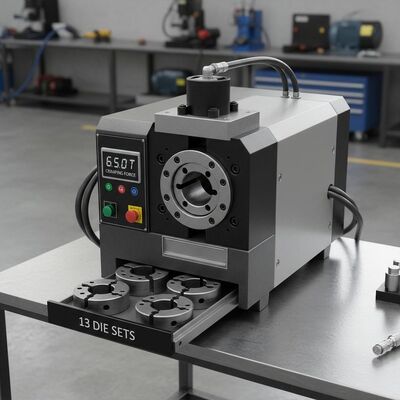

Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and Compact Structure
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14 - 87mm | Hose Size | 1/4 - 2.5inch |
|---|---|---|---|
| Die Sets | 13 | Color | Blue |
| Max. Opening | 31mm | Crimping Force | 650T |
| System Pressure | 31.5Mpa | Power | 3.75KW |
| Size | 650*550*1360mm | Weight | 310Kg |
| Highlight | 650T Crimping Force Hose Crimper,13 Die Sets Hydraulic Hose Crimping Machine,Compact Structure Pipe Crimping Tool |
||
Product Description

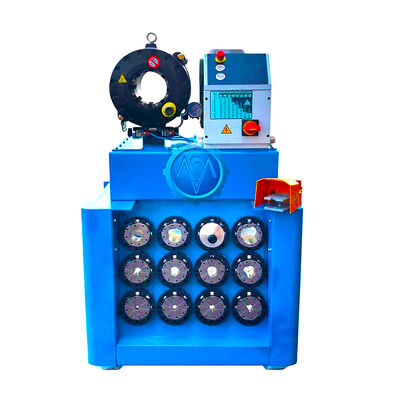

SP32 Hydraulic Hose Crimping Machine
The SP32 hydraulic pipe crimping machine is designed for creating high-pressure flexible hose assemblies ranging from 1/4 inch to 2.5 inch, accommodating 1 to 6 wire configurations. This machine is the optimal solution for single-piece hose production requirements.
Key Advantages
- Quick-change die sets enable simultaneous replacement of all dies
- Double conical master die design delivers substantial crimping force
- Foot pedal operation allows for hands-free control during crimping
Technical Specifications
| Model | MS-SP32 Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 mm |
| Crimping Force | 650 Tons |
| Hose Size | 1/4 - 2.5 inch |
| Maximum Opening | 31 mm |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control System | MS |
| Standard Voltage | 220V / 380V |
| Motor Power | 3.75 KW |
| Dimensions (L*W*H) | 650 * 550 * 1360 mm |
| Weight | 310 kg |
P32 Standard Die Sets
| Die Number | Crimping Range (mm) | Length (mm) |
|---|---|---|
| 6* | 6.0 - 8.0 | 55 |
| 8* | 8.0 - 10.0 | 55 |
| 10* | 10.0 - 12.0 | 55 |
| 12* | 12.0 - 14.0 | 55 |
| 14 | 14.0 - 16.0 | 55 |
| 16 | 16.0 - 19.0 | 55 |
| 19 | 19.0 - 22.0 | 55 |
| 22 | 22.0 - 26.0 | 70 |
| 26 | 26.0 - 30.0 | 70 |
| 30 | 30.0 - 34.0 | 70 |
| 34 | 34.0 - 39.0 | 75 |
| 39 | 39.0 - 45.0 | 75 |
| 45 | 45.0 - 51.0 | 90 |
| 51 | 51.0 - 57.0 | 90 |
| 57 | 57.0 - 63.0 | 100 |
| 63 | 63.0 - 69.0 | 110 |
| 69 | 69.0 - 74.0 | 110 |
| 74 | 74.0 - 78.0 | 110 |
| 78 | 78.0 - 87.0 | 110 |
• "*" indicates non-standard die sets
• Customized die sets available upon request
• Special voltage options: 110V, 208V, 240V, 415V
Premium CR12MOV 13 Die Sets
Features 13 die sets with hardness rating of 59-63HRC, including quick-change tools for significantly improved productivity.
Compact Design
Compact structural design with minimal footprint, delivering substantial crimping force in a space-efficient package.
Applications
The SP32 high-configuration hose crimper is suitable for crimping high-pressure stainless steel braided hydraulic rubber hose, cables and wires, steel iron square or round tubes, brake hose lines in automotive systems, and air suspension or spring components.
